Wired Rain Sensor for Window Shutters – Automatic Rain Detection
Wired Rain Sensor for Window Shutters – Automatic Rain Detection
Water Probe Rain Drop Detector Closing Window Shutter Wired Rain Sensor - Image 3
Water Probe Rain Drop Detector Closing Window Shutter Wired Rain Sensor - Image 4
Water Probe Rain Drop Detector Closing Window Shutter Wired Rain Sensor - Image 5
Water Probe Rain Drop Detector Closing Window Shutter Wired Rain Sensor - Image 6
Water Probe Rain Drop Detector Closing Window Shutter Wired Rain Sensor - Image 7
Wired Rain Sensor for Window Shutters – Automatic Rain Detection
Wired Rain Sensor for Window Shutters – Automatic Rain Detection

Water Probe Rain Drop Detector Closing Window Shutter Wired Rain Sensor

For the wireless sensor, contact seller, pls.

We provide different types of switches for DC24V OR AC Motors, which could be used with the rain sensor

Versions
Wired Rain sensor
Wireless RF Rain sensor
Power input
DC12V
6LR61 battery
Send signal
Voltage pulse
RF signal

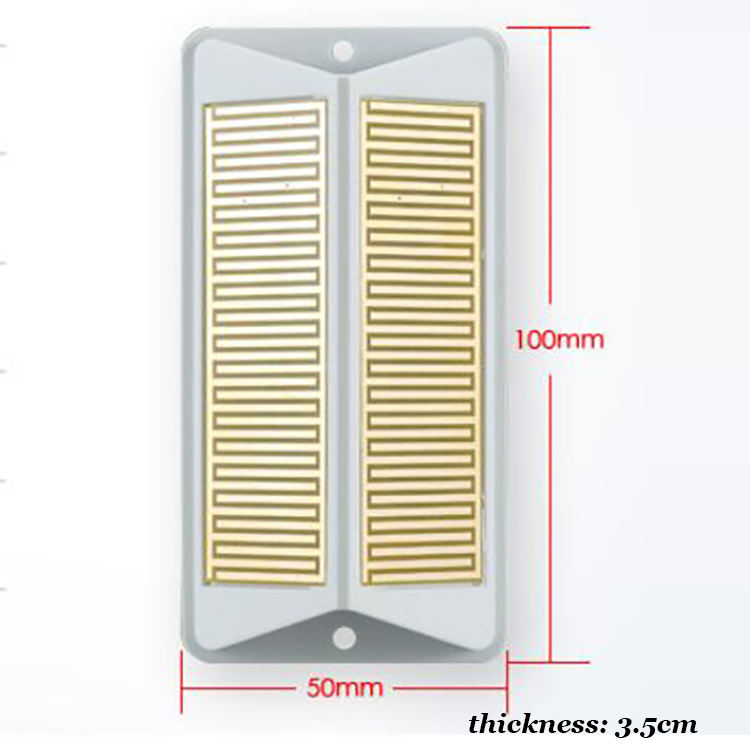

Size
10*5*3.5cm
10*5*3.5cm
Category:

Vankesmart Wired sensor

-Exquisite appearance design
-Anti UV radiation enclosure, suitable for outdoor installation
-Sensitive to rain
-Power supply: DC5V-24V for wired sensor
-Temperature: -20oC to +65oC

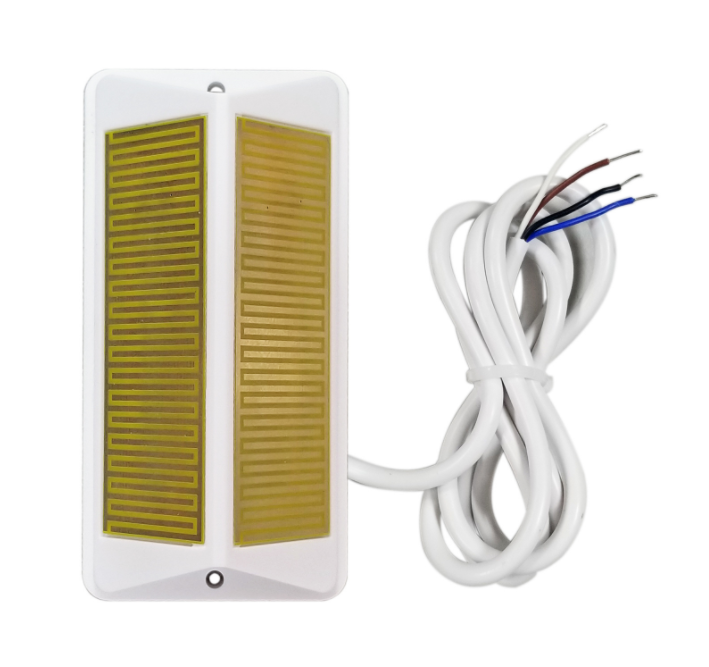

-Suitable for using multiple smart switchesWiring diagram
-White line: DC12V +
-Blue line: public line
-Brown line: signal down/up
-Black line: signal up/down

Wireless sensor

-Exquisite appearance design
-Anti UV radiation enclosure, suitable for outdoor installation
-Sensitive to rain
-Frequency: 433.92Mhz for wireless sensor
-Power supply: 6LR61 battery for wireless sensor
-Temperature: -20oC to +65oC
-Suitable to use multiple smart switches, chain window opener with built-in receiver (Sold in our store)
