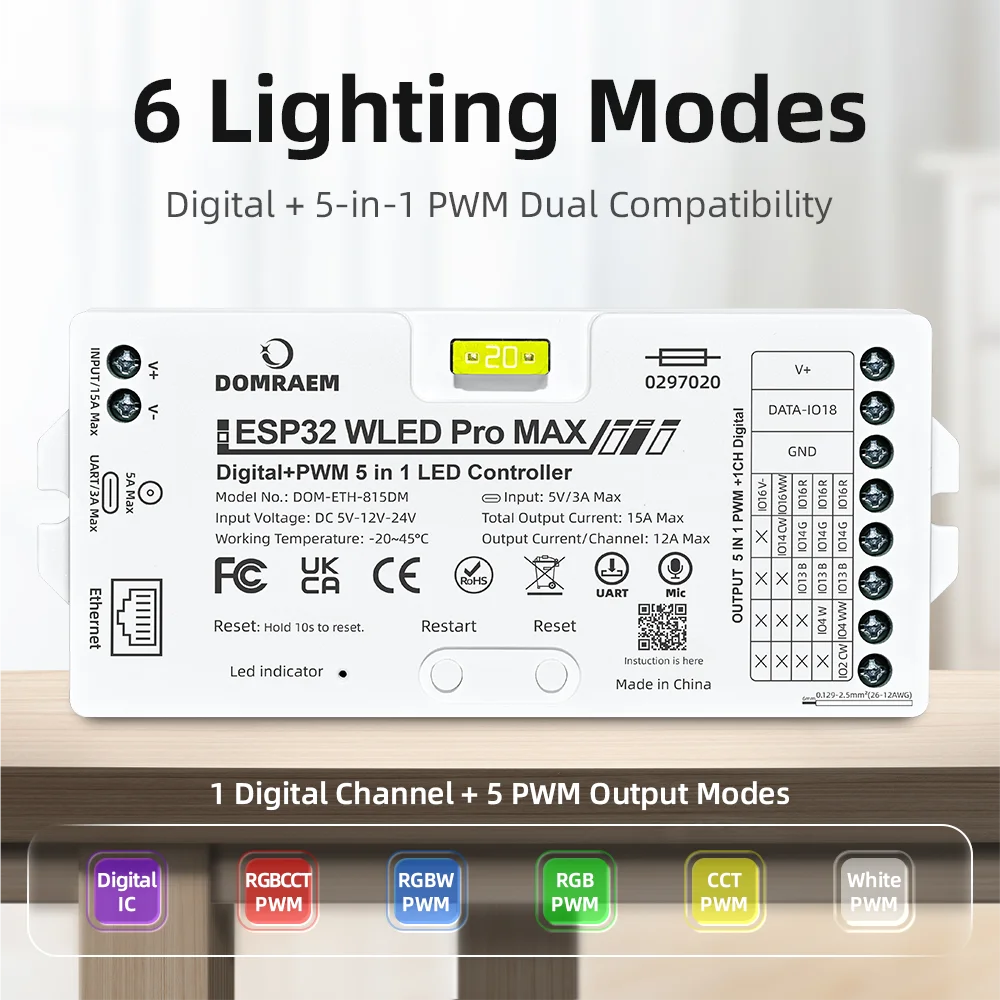

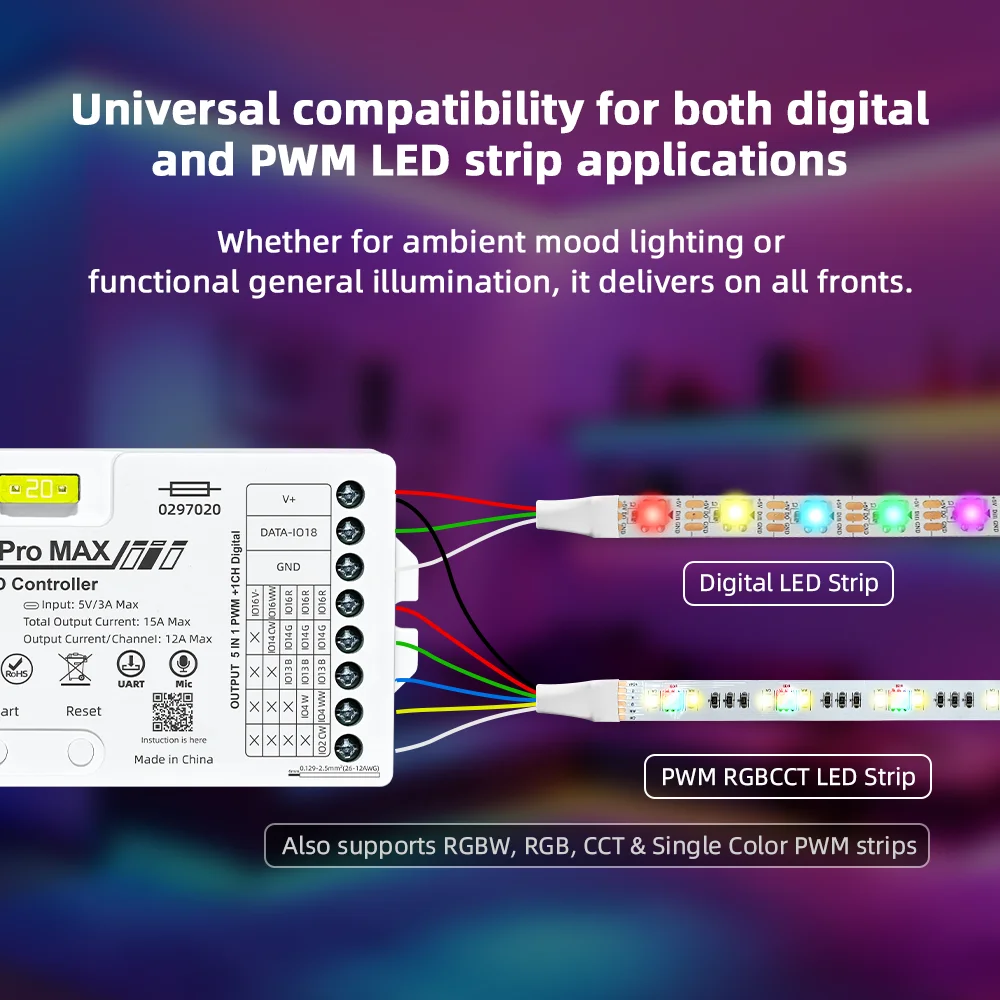

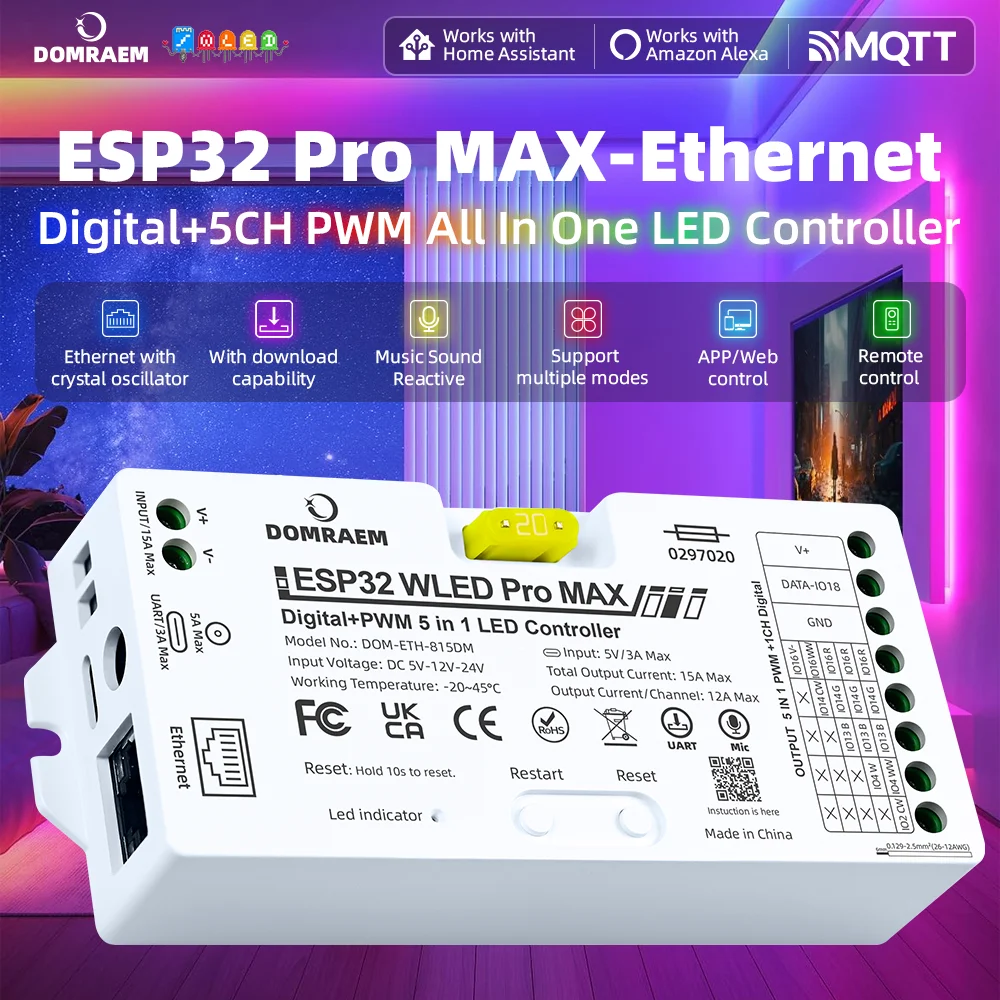

The DOMRAEM DOM-ETH-815DM WLED Pro MAX is an advanced ESP32-powered dual-mode controller engineered to simultaneously drive digital addressable pixel strips and standard PWM lighting. Designed for high performance and versatility, it supports 1-channel digital pixel output alongside 5-channel PWM control for Single Color, CCT, RGB, RGBW, and RGBCCT configurations.

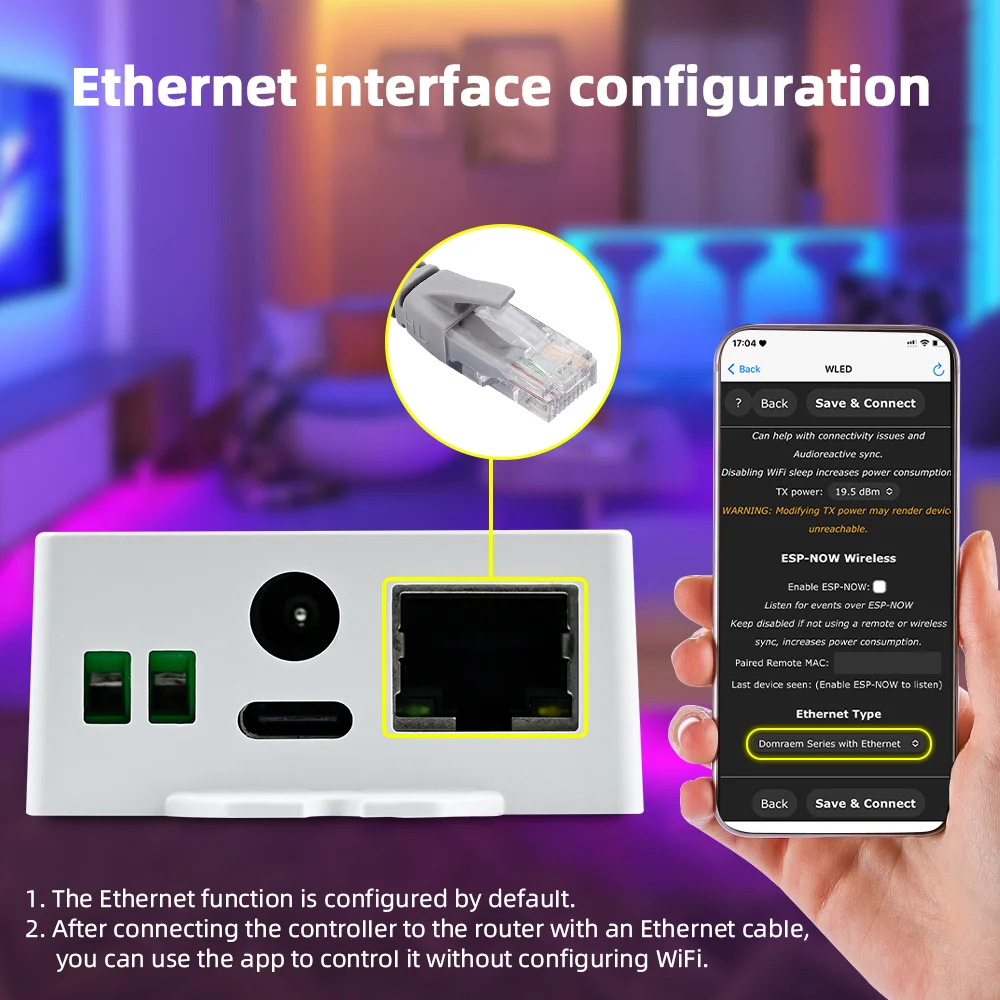

Featuring low-latency dual connectivity, the controller integrates both a plug-and-play wired RJ45 Ethernet port and 2.4G Wi-Fi for stable, drop-free operation. An onboard high-sensitivity PDM microphone enables dynamic audio synchronization, delivering sound-reactive light effects tailored for gaming environments, media centers, and home installations.
The unit offers versatile power management with three input options: DC terminal block, standard DC jack, and 5V/3A Type-C input, operating over a wide DC 5V–24V range. Built-in circuit safety features include a 15A total maximum load rating (12A single channel) and an external pluggable 20A fuse for overcurrent protection.
What’s in the Box
- 1x WLED LED Controller (DOM-ETH-815DM)
- 1x 0297005 Low-Power Fuse
- 1x Fuse Installation Fixture
- 1x Screwdriver
- 1x 3 cm Adhesive Sticker
- 1x User Manual
- 1x Packaging Box
| Brand | DOMRAEM |
| Model Number | DOM-ETH-815DM |
| Item Type | LED Controller |
| Material | ABS Plastic |
| Processor | ESP32 |
| Connectivity | Ethernet (RJ45), 2.4GHz Wi-Fi |
| Input Voltage | DC 5V – 24V |
| Power Input Ports | Terminal Block, DC Jack, Type-C (5V/3A) |
| Max Load Power | 360W |
| Max Current | 15A Total (12A Single Channel) |

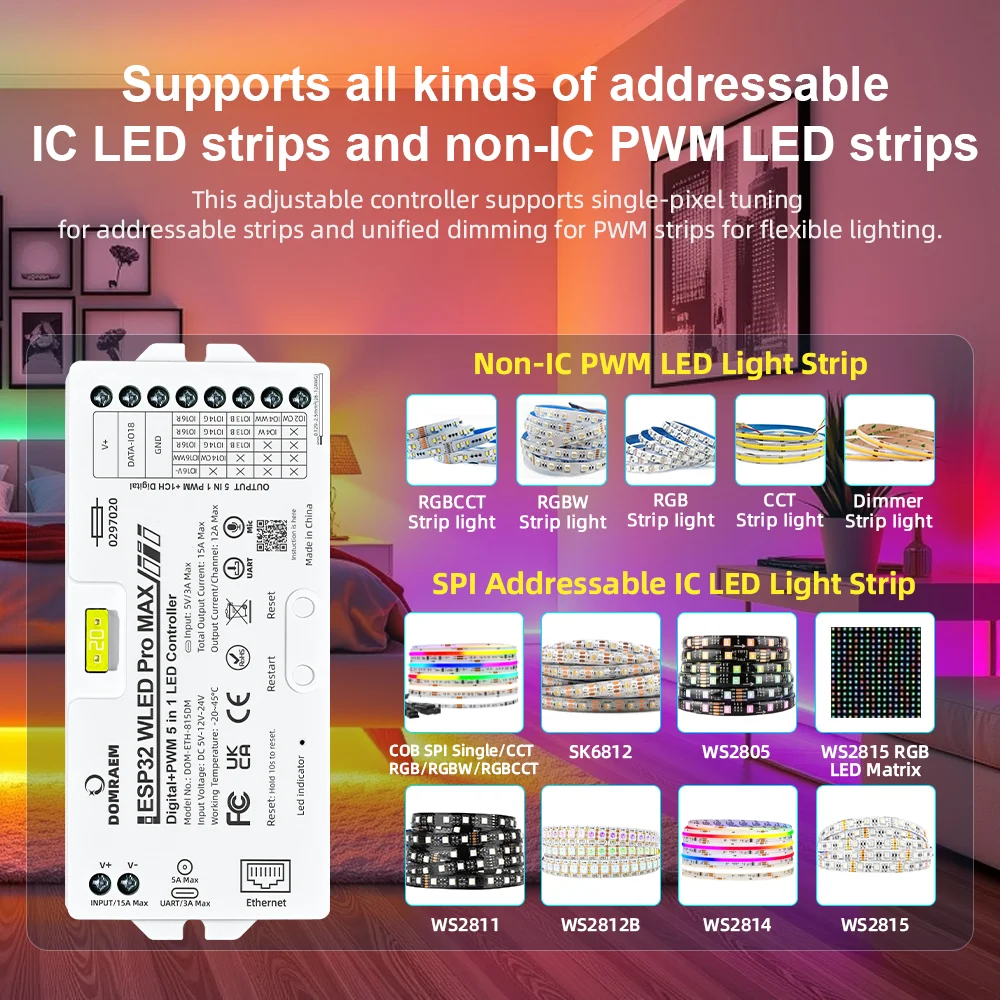

| Digital Strip Support | WS2812B, SK6812, WS2815, APA102 (1CH IO18) |
| PWM Strip Support | Single Color, CCT, RGB, RGBW, RGBCCT (Up to 5CH) |
| Audio Sync | Onboard PDM Microphone |
| Control Protocol | WLED App, Web UI, MQTT, Alexa, Home Assistant |
| Remote Distance | 30 m |
| Circuit Protection | Pluggable 20A External Fuse |
