The DOMRAEM DOM-WLE-18P is an advanced 4-channel addressable LED controller powered by an ESP32 microcontroller and pre-installed with WLED firmware. Designed for versatile smart lighting installations, it features dual-system power inputs supporting both Type-C Power Delivery (PD 3.0 up to 60W) and dual wide-voltage DC 5–24V connections with a 16A total fuse capacity, capable of driving up to 3,2

SKU: N/A Categories: ,

The DOMRAEM DOM-WLE-18P is an advanced 4-channel addressable LED controller powered by an ESP32 microcontroller and pre-installed with WLED firmware. Designed for versatile smart lighting installations, it features dual-system power inputs supporting both Type-C Power Delivery (PD 3.0 up to 60W) and dual wide-voltage DC 5–24V connections with a 16A total fuse capacity, capable of driving up to 3,200 pixels total (800 pixels per channel).

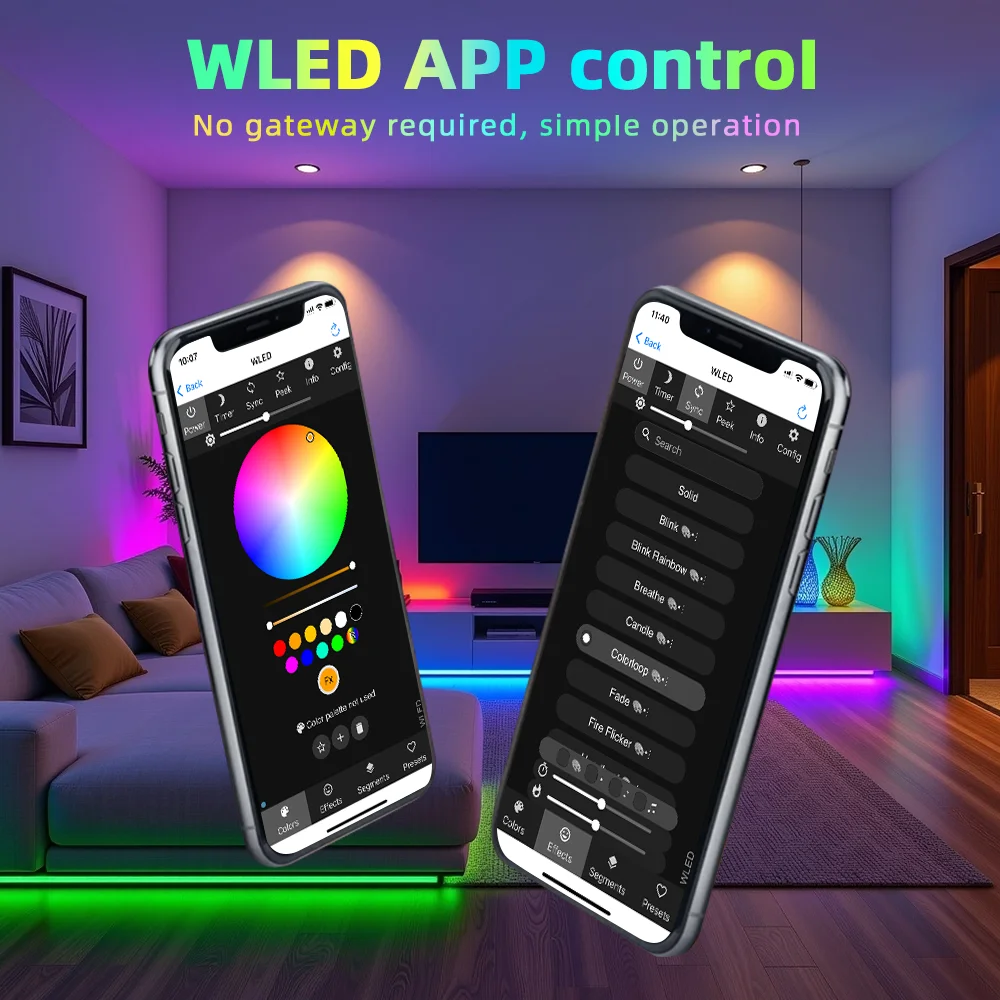

Equipped with an integrated microphone, the controller delivers real-time sound reactivity and music synchronization. It includes an onboard USB-C UART debug port for straightforward flashing and programming without opening the housing. The controller supports Wi-Fi app and web interface control, offering over 100 dynamic lighting effects, segment control, and smart home integration with platforms such as Home Assistant, MQTT, and Alexa.

Key Features

  • ESP32 Architecture: Pre-flashed with WLED firmware featuring over 100 lighting modes, custom segmenting, and local network control.

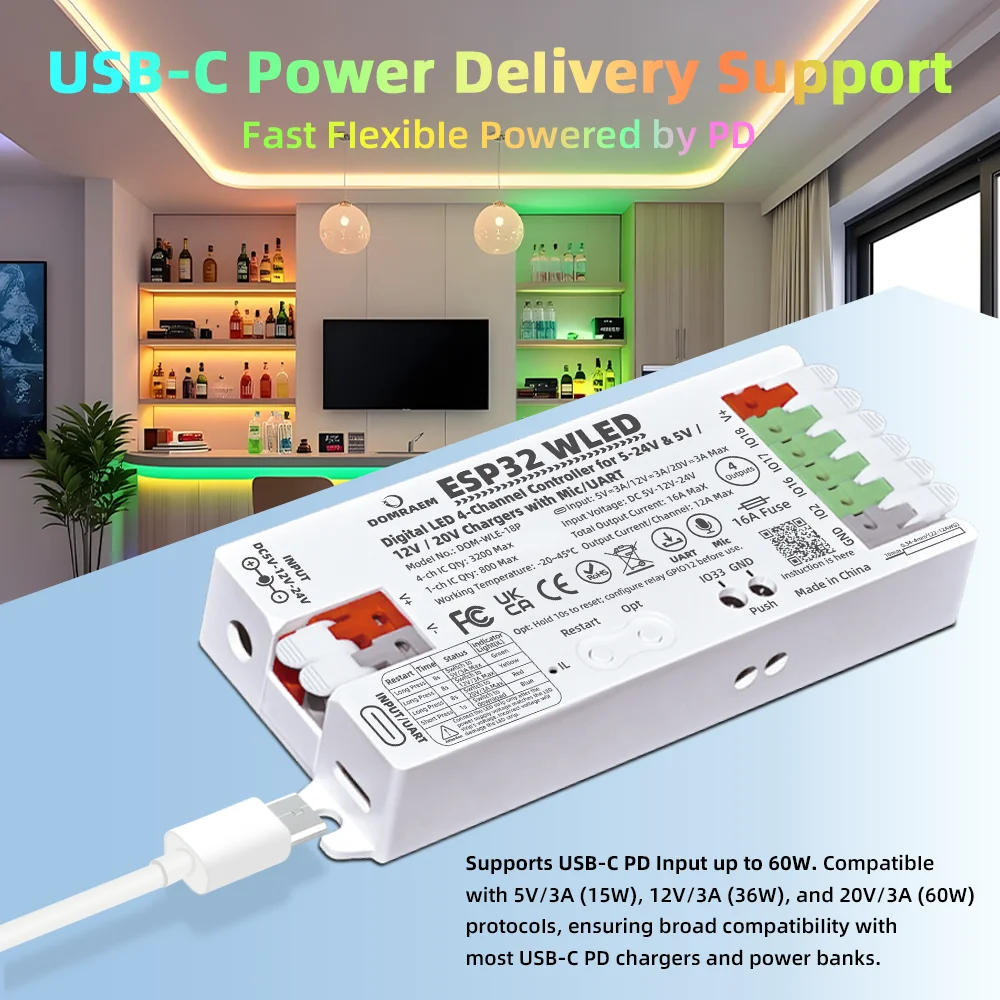

  • Dual Power System: Type-C PD input (5V/3A, 12V/3A, 20V/3A) alongside dual 5–24V DC terminal blocks with a 16A fuse.
  • Audio Reactive: Built-in microphone enables dynamic music and ambient sound synchronization.
  • Easy Programming: Integrated USB-C UART port provides seamless firmware updates and debugging.
  • Broad Protocol Support: Compatible with WS2811, WS2812B, SK6812, APA102, and various RGB, RGBW, and RGBCCT addressable LED strips.
Brand DOMRAEM
Model DOM-WLE-18P
Product Type Addressable LED Controller
Microcontroller ESP32
Output Channels 4 Channels
Pixel Capacity 800 Pixels/Channel (3200 Pixels Total)
Input Voltage DC 5–24V / Type-C PD (5V/3A, 12V/3A, 20V/3A)
Max Current 16A
Max Load Power 384W
Connectivity Wi-Fi
Debug Interface USB-C UART
Material ABS Plastic
Dimensions 109.5 × 46 × 17.5 mm
Operating Temperature -20°C to +45°C
Compatible LED Types WS2811, WS2812B, WS2813, SK6812, APA102, TM1814, WS2814, WS2805
Smart Home Compatibility Home Assistant, MQTT, Alexa
Button Number 2 year warranty
Weight 0.26 lbs
Dimensions 4.31 × 1.81 × 0.69 in
Color

ESP32 4CH Mic UART B, ESP32 4CH Mic UART W, ESP32 4CH Mic UART Y
