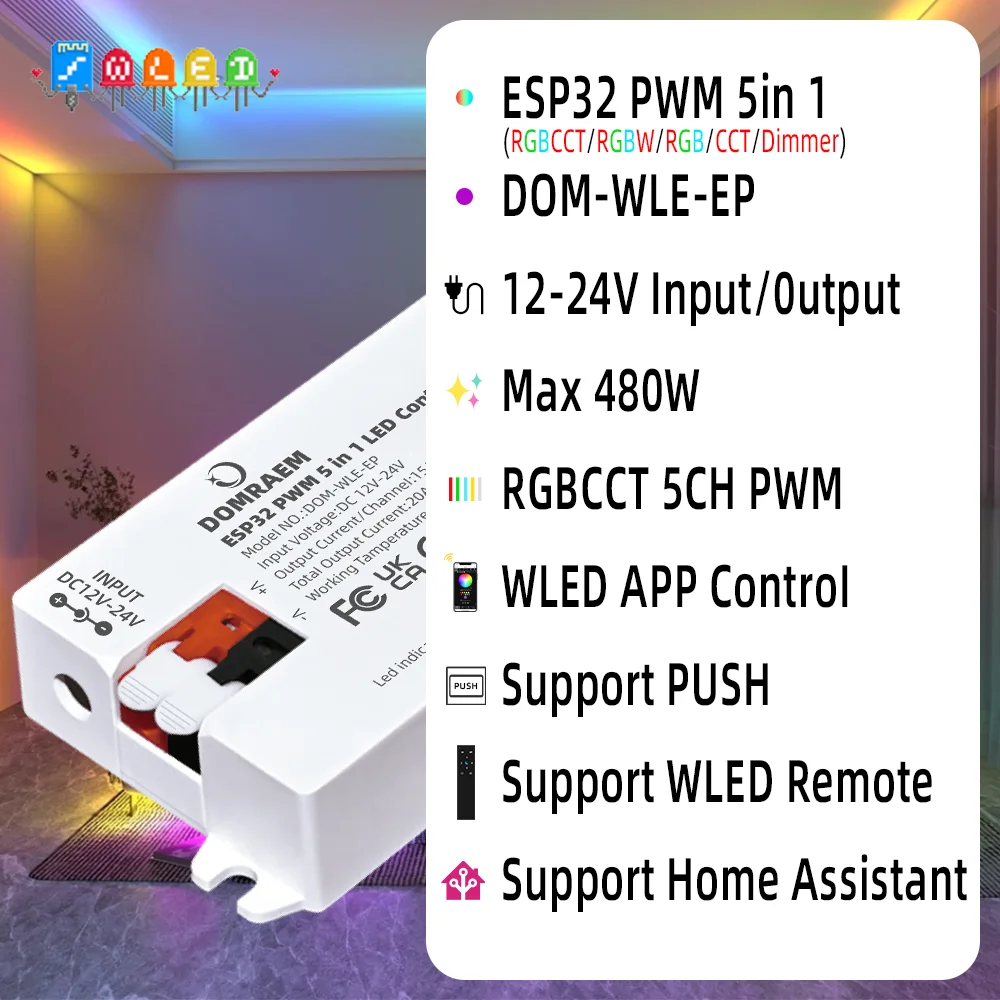

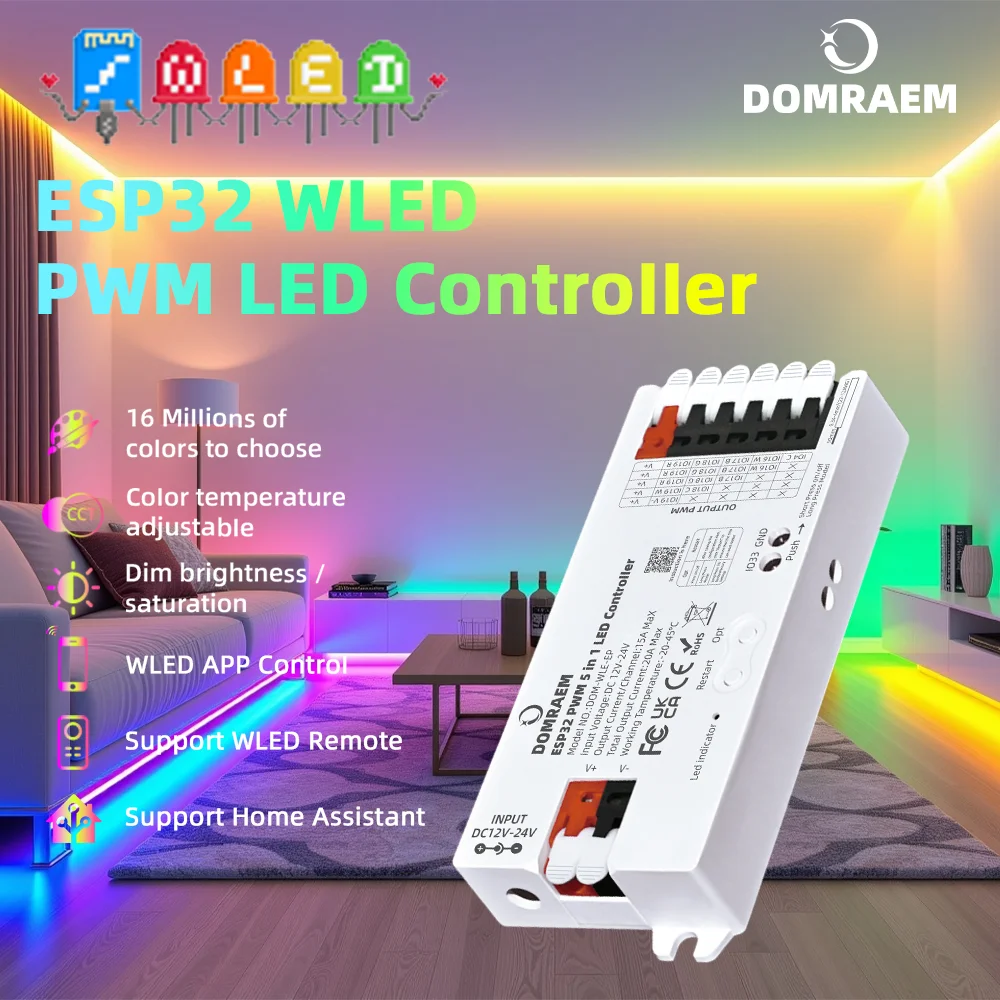

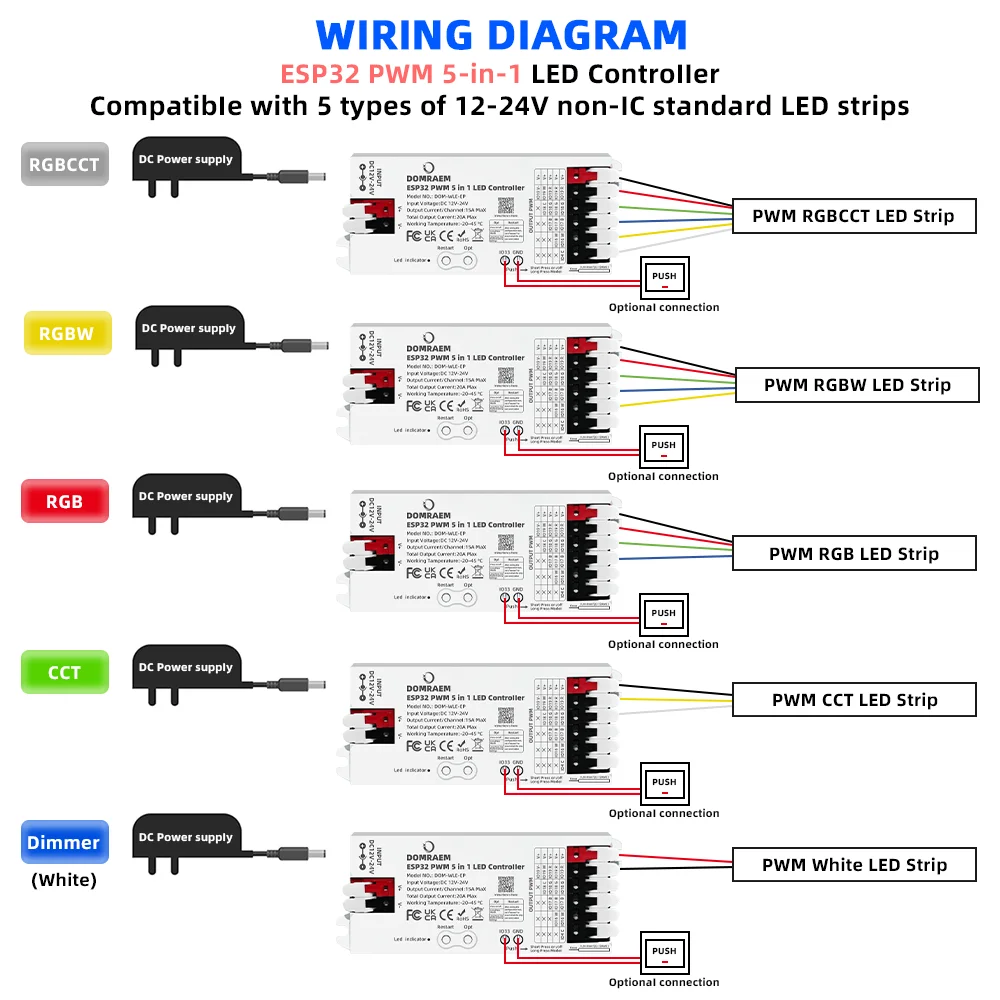

The DOMRAEM ESP32 WLED PWM Controller delivers versatile 5-in-1 management for analog LED strip installations. Engineered to accommodate 2, 3, 4, 5, and 6-wire configurations, it supports single color, dual white (CCT), RGB, and RGB+CCT setups for extensive lighting customization.
Equipped with built-in Wi-Fi and WLED firmware support, this smart controller integrates seamlessly into smart home environments, offering compatibility with Alexa, Google Home, and Home Assistant. Users can adjust brightness, lighting effects, and colors via the WLED application or a compatible wireless remote control operating within a 30-meter range.

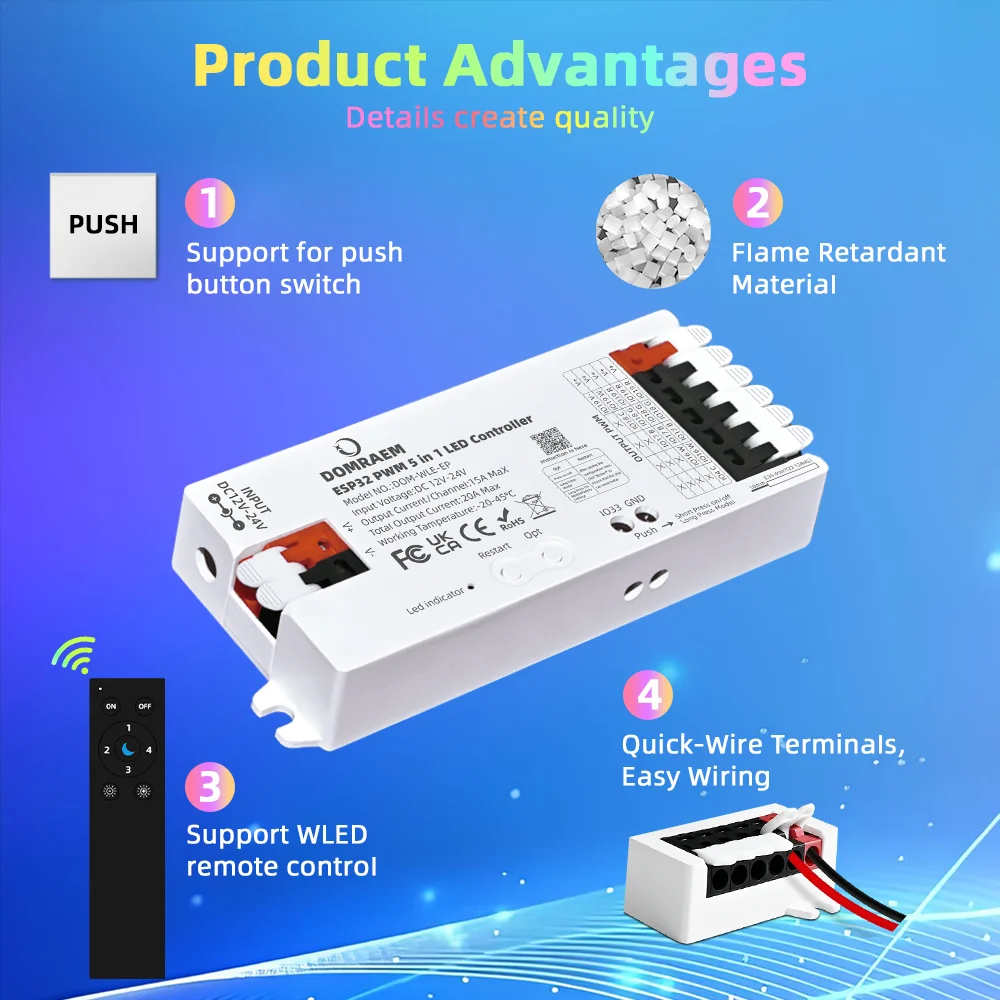

Housed in durable ABS material, the unit supports DC 12–24V input with a maximum load capacity of 480W, making it suitable for large-scale and high-power LED projects. Its compact form factor facilitates clean and unobtrusive installation in tight spaces.
| Brand | DOMRAEM |
| Model Number | DOM-WLE-EP |
| Control Protocol | PWM, Wi-Fi (WLED) |
| Compatibility | Single Color, CCT, RGB, RGBW, RGBCCT (2/3/4/5/6 Wires) |
| Smart Home Compatibility | Alexa, Google Home, Home Assistant |
| Input Voltage | DC 12–24V |
| Maximum Load Capacity | 480W |
| Material | ABS |
| Wireless Range | 30 m |
| Oscillation Frequency | 50-60 Hz |
| Dimensions | 12 x 10 x 2 cm |
| Weight | 0.065 kg |
| Certifications | CE, FCC, RoHS, LVD, EMC |
| Warranty | 2 Years |
| Button Number | 2 year warranty |
