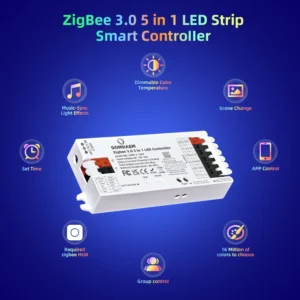

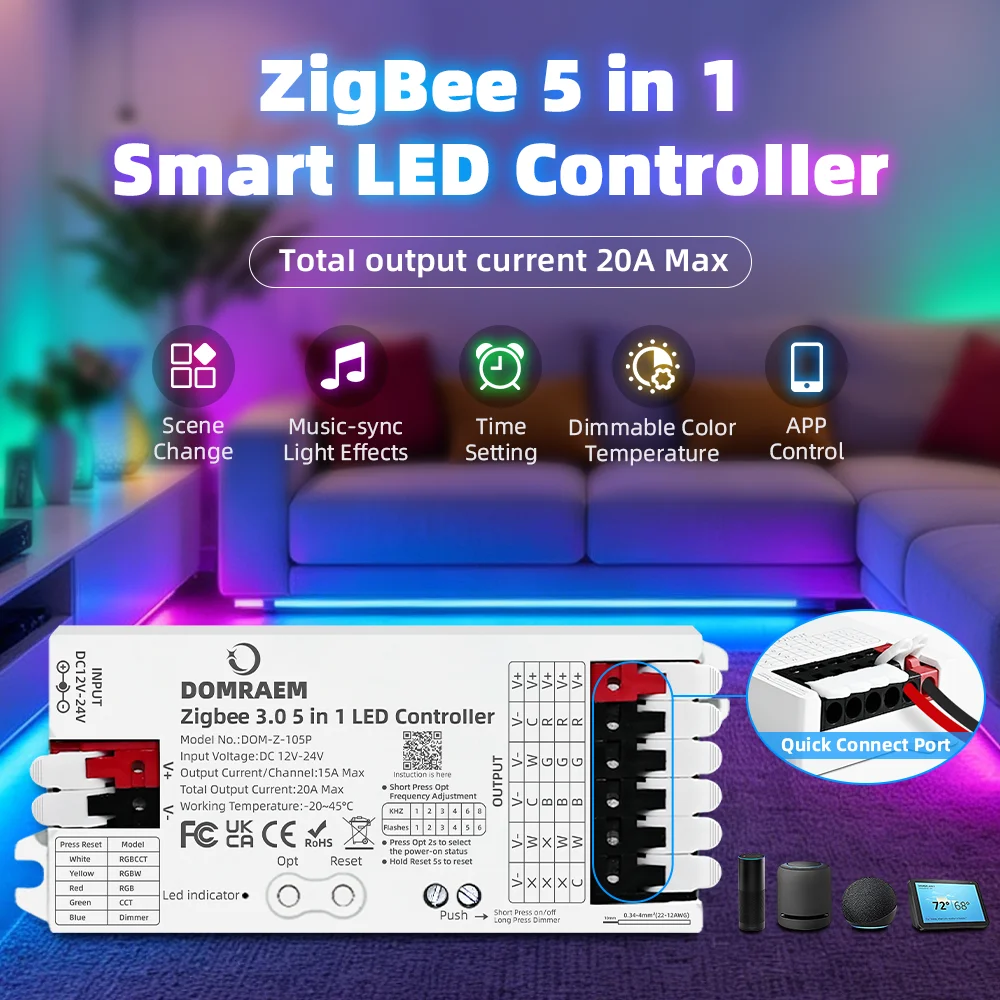

The DOMRAEM Zigbee 3.0 Smart LED Controller provides professional-grade, flicker-free PWM dimming and color management for low-voltage LED strip lights. Engineered with high-power output supporting up to 15A per channel and a 20A total current limit (480W maximum load at 24V), this controller can easily manage continuous LED runs from 10m to 20m.
Featuring wide compatibility via the Zigbee 3.0 protocol, it pairs seamlessly with standard Zigbee gateways including Tuya, SmartThings, Philips Hue, Home Assistant (via Zigbee2MQTT), and directly with Zigbee-enabled Amazon Echo devices for responsive voice control. It supports smooth 0–100% dimming, multi-color customization, preset scene creation, and optional RF remote control (compatible with select Miboxer remotes).

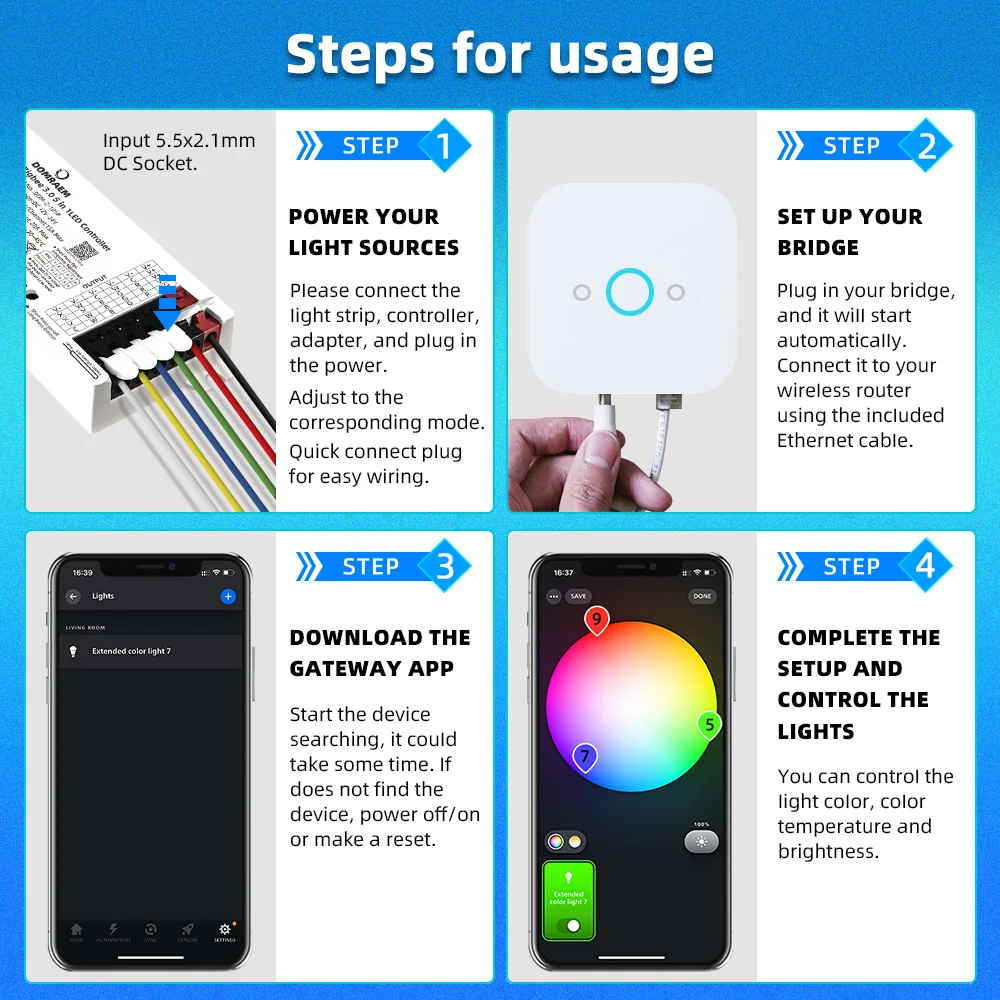

Equipped with screwless push terminals for quick wiring, selectable PWM frequencies to prevent audible low-frequency noise, a built-in power-off memory function, and a push-button interface for manual switching and dimming, this controller offers flexible and reliable lighting automation.
| Brand | DOMRAEM |
| Product Type | LED Controller |
| Wireless Protocol | Zigbee 3.0 |
| Input Voltage | DC 12V – 24V |
| Max Total Current | 20A |
| Single Channel Max Current | 15A |
| Max Load Power | 480W |
| Remote Control Range | 30 m |
| Material | ABS Plastic |
| Dimming Technology | PWM |
| Warranty | 2 Years |
| Certifications | CE, EMC, LVD, RoHS |
| Country of Origin | Mainland China |
| Button Number | 2 year warranty |
