Take control of your multi-segment addressable LED setups with this 6-output ESP32 digital WLED controller. Designed for versatile smart lighting, it features six independent signal output ports to drive multiple lighting zones with individual effects and color schemes. An integrated high-sensitivity PDM microphone enables dynamic sound-reactive lighting synced directly to your music and audio.

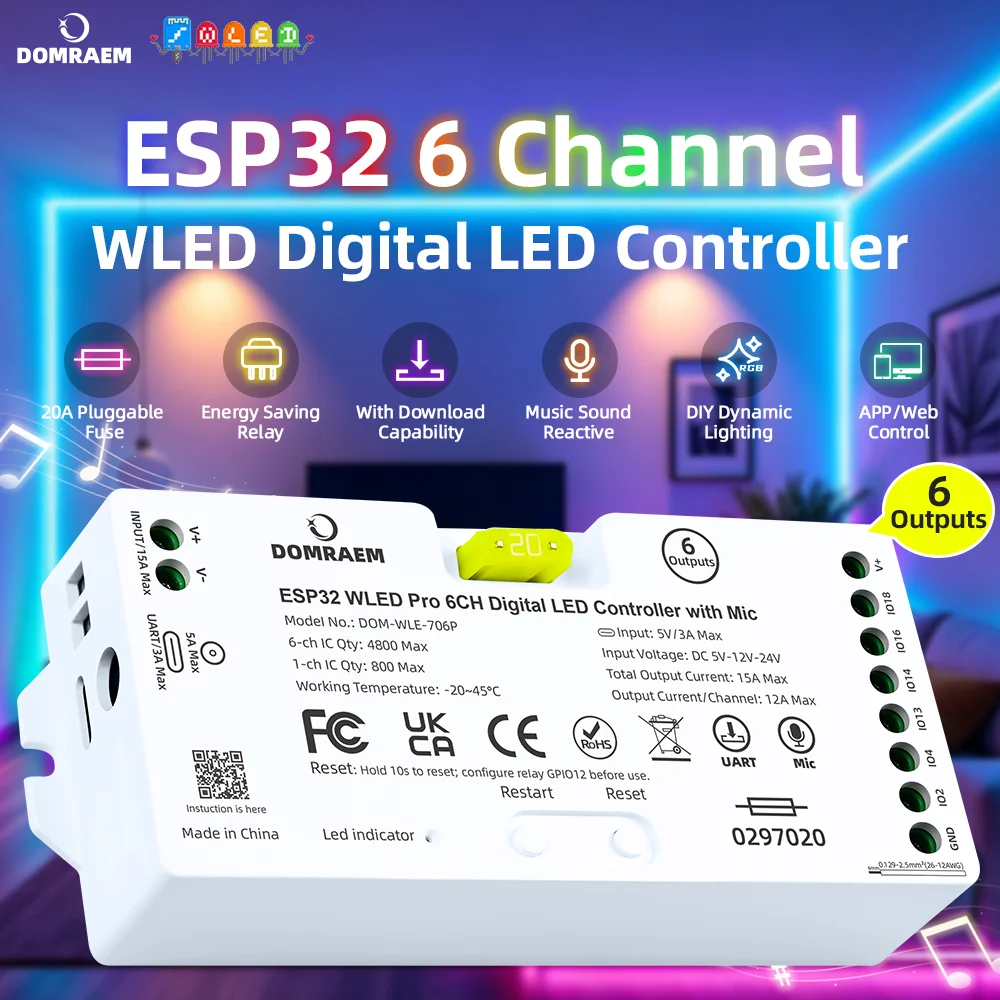

Built with efficiency and protection in mind, the controller supports a DC 5V–24V wide input range, handling up to 360W (15A max load) protected by an easily swappable safety fuse. An onboard physical relay cuts off power to the LED strips during standby mode, significantly reducing overall energy consumption. The ABS enclosure ensures robust durability for DIY or custom smart home installations.
Enjoy seamless ecosystem integration with native WLED web UI support, Home Assistant, Alexa, and MQTT compatibility. It works with a wide range of popular digital addressable LED strips including WS2811, WS2812B, WS2813, SK6812, TM1814, and WS2805.
| Product Type | Addressable LED Controller |
| Material | ABS |
| Input Voltage | DC 5–24V |
| Max Load Power | 360W |
| Power Range | 15W–360W |
| Output Channels | 6 Ports |
| Connectivity | Wi-Fi, Ethernet, Type-C UART |
| Audio Input | Built-in High-Sensitivity PDM Microphone |
| Control Method | WLED Web UI / App / Smart Voice |
| Remote Distance | 30 m |

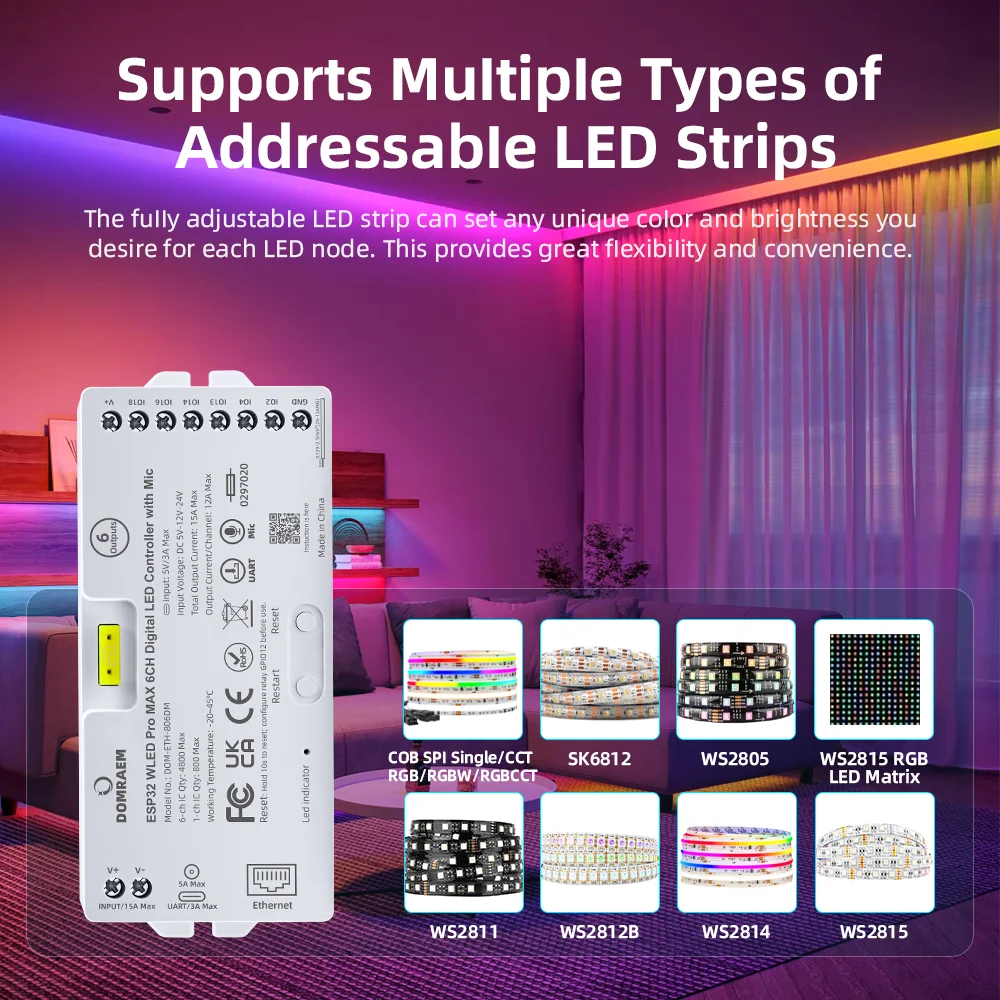

| Compatible Lights | WS2811, WS2812B, WS2813, SK6812, TM1814, WS2805 |
| Smart Home Compatibility | Home Assistant, Alexa, MQTT |
| Certifications | CE, EMC, LVD, RoHS, FCC |
| Country of Origin | Mainland China |
| Button Number | 2-year warranty |
