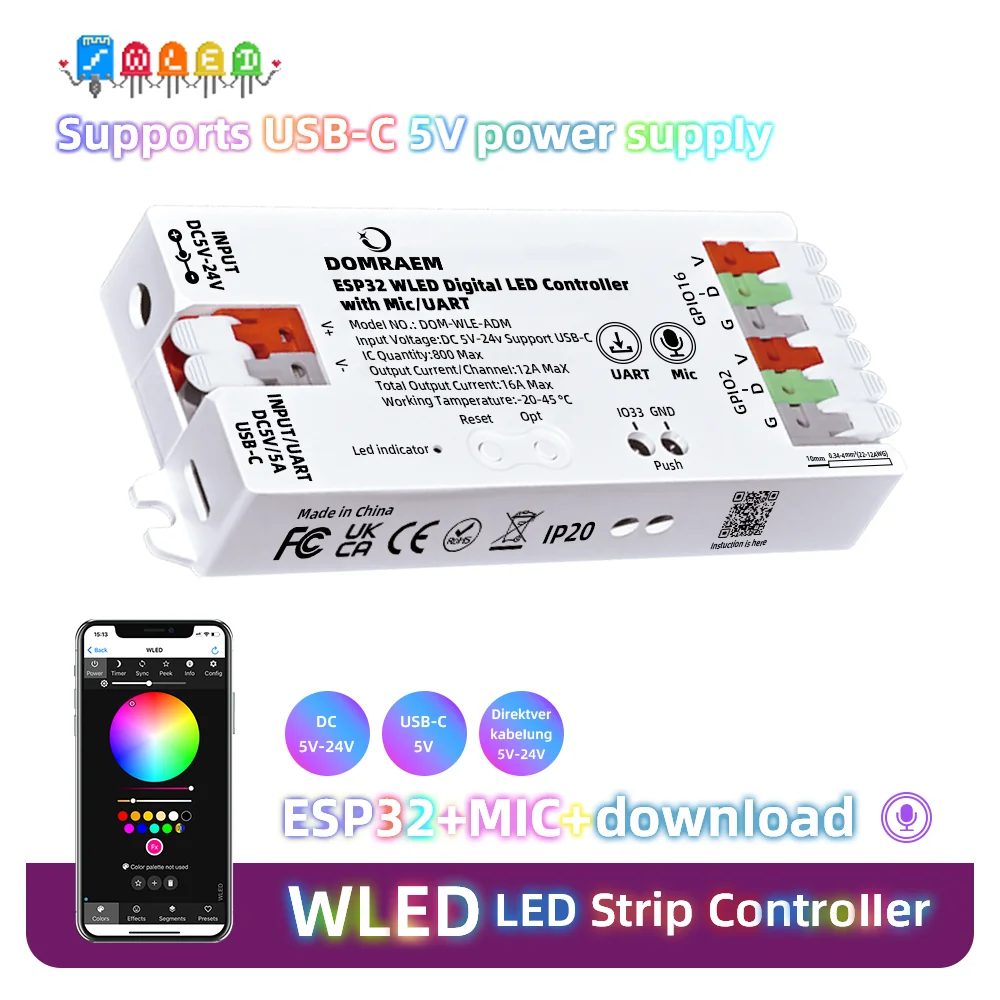

Upgrade your smart lighting setup with the ESP32 WLED Addressable LED Strip Controller. Powered by open-source WLED firmware, this controller offers dynamic control over 16 million colors and more than 100 built-in lighting effects, compatible with iOS and Android devices.

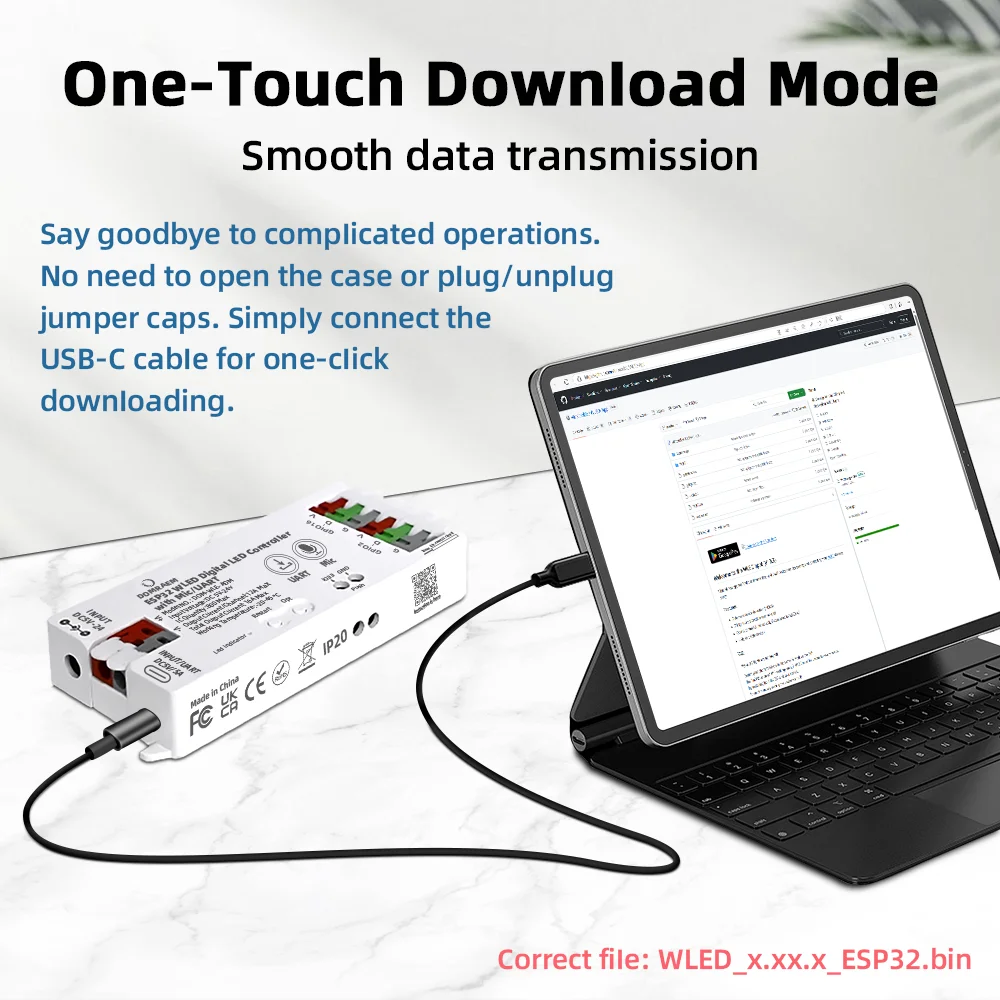

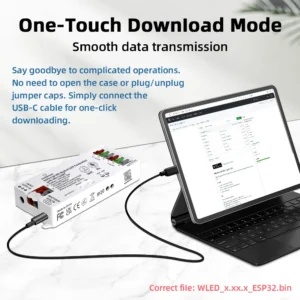

Equipped with an integrated microphone for sound and music synchronization and a multi-functional USB-C interface for power and UART firmware updates, it provides flexible operation for custom DIY setups. It seamlessly integrates into smart home ecosystems with support for MQTT, Home Assistant, Alexa, and Google Assistant.
Key Capabilities & Features:
- Wide Voltage & High Power: Supports DC 5–24V input with up to 16A total current (12A max per channel) and a built-in 16A fuse to reliably power long LED runs.
- Broad LED Strip Compatibility: Compatible with popular addressable LED chipsets including WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, SK6812, TM1814, and WS2805 across RGB, RGBW, and RGBCCT formats.
- Energy Efficient: Features low standby power consumption of approximately 0.5W.
- Connectivity & Range: Built-in Wi-Fi control supporting remote distances up to 30 m.
| Product Type | Addressable LED Strip Controller |
| Model | DOM-WLE-ADM |
| Chipset | ESP32 with Mic & UART |
| Input Voltage | DC 5–24V |
| Max Load Power | 384W |
| Total Current | 16A Max |
| Max Supported ICs | 800 |
| Connectivity | Wi-Fi |
| Dimensions | 109.5 x 46 x 17.5 mm |
| Material | ABS plastic |
| Operating Temperature | -20°C to 45°C |
| Supported LED Types | WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, SK6812, TM1814, WS2805 |
| Certifications | CE, EMC, FCC, LVD, RoHS |
| Country of Origin | Mainland China |
| Button Number | 2 Years Warranty |
