Upgrade your smart lighting setup with the ESP32 WLED Controller. Designed for versatile and dynamic lighting projects, this controller features 4 output channels and a built-in microphone for real-time sound-reactive lighting effects.
Key Features
- Sound-Reactive Control: Built-in microphone enables dynamic music and audio synchronization with your addressable LED strips.
- Broad LED Compatibility: Compatible with popular addressable LED chipsets, including WS2811, WS2812, WS2812B, WS2813, WS2814, WS2805, SK6812, TM1814, and APA102.

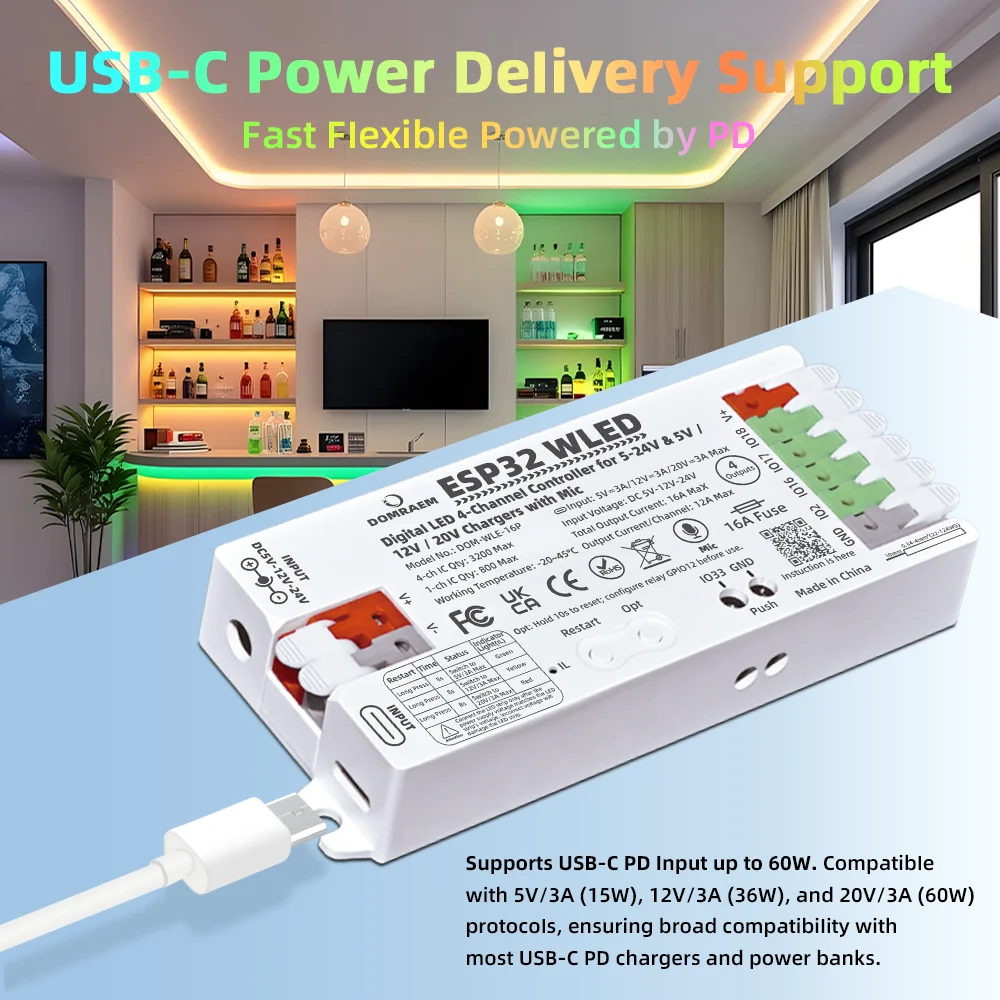

- Flexible Power Options: Supports DC 5–24V input with a 16A fuse, delivering up to 384W maximum load power. Also supports USB Type-C PD input (5V/3A, 12V/3A, 20V/3A).
- Wireless & Smart Home Integration: Connects via Wi-Fi for control through the WLED app. Supports smart home automation protocols including MQTT, Home Assistant, and Alexa.
- Durable & Compact: Housed in durable ABS plastic, measuring 109.5 x 46 x 17.5 mm and weighing just 80 g for easy, low-profile installation.
| Model Number | DOM-WLE-16P |
| Connectivity | Wi-Fi |
| Channels | 4 Outputs |
| Input Voltage | DC 5–24V / USB Type-C PD (5V, 12V, 20V) |
| Max Current | 16A |
| Max Load Power | 384W |
| Compatible Chipsets | WS2811, WS2812, WS2812B, WS2813, WS2814, WS2805, SK6812, TM1814, APA102 |
| Smart Home Protocols | MQTT, Home Assistant, Alexa |
| Material | ABS Plastic |
| Dimensions | 109.5 x 46 x 17.5 mm |
| Weight | 80 g |
| Features | Sound-Reactive Mic, DIY Programmable, Addressable Control |
| Button Number | 2 Years Warranty |
