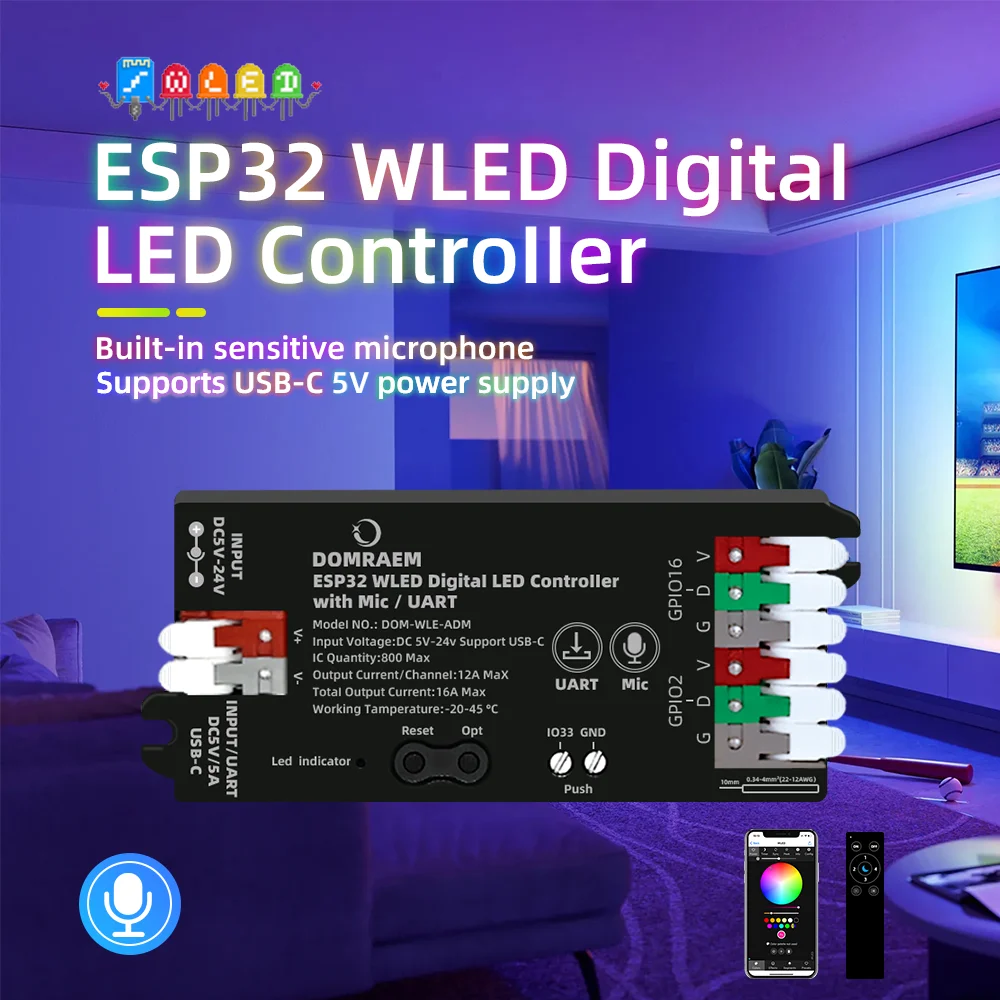

The ESP32 WLED Digital LED Controller provides advanced control and customization for addressable LED setups. Engineered with an integrated microphone and UART interface, this smart controller supports over 100 dynamic lighting effects and seamless sound synchronization.
Key Features:
- Wide Voltage Input: Operates efficiently across DC 5-24V with a maximum output capacity of up to 16A (12A single-channel max), delivering stable power for extended LED strip runs.

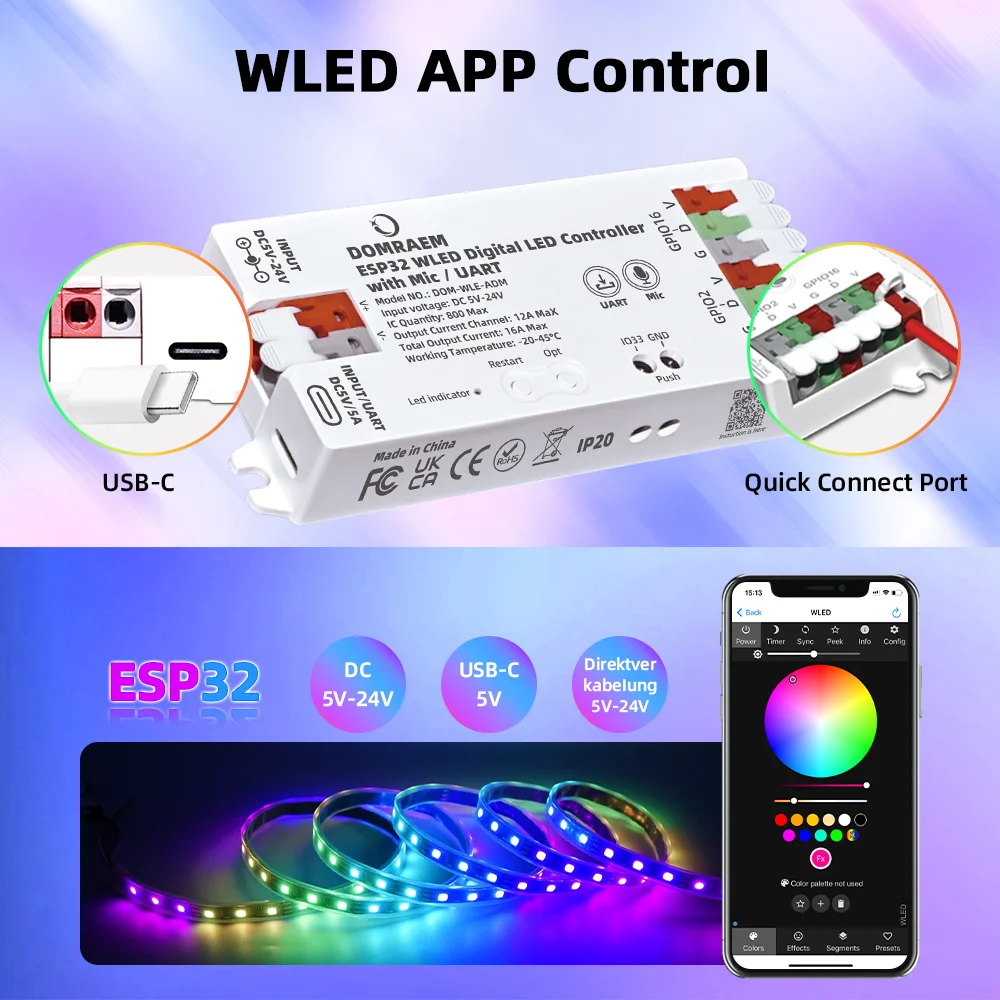

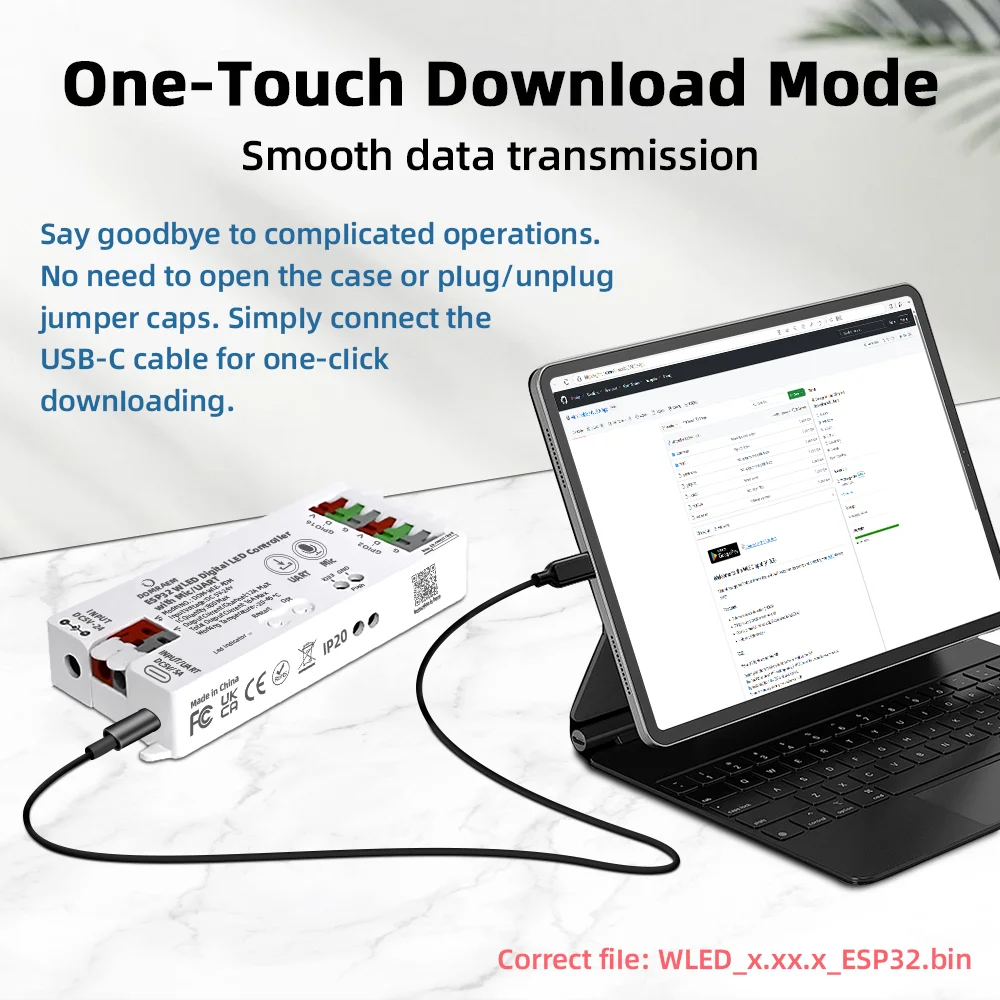

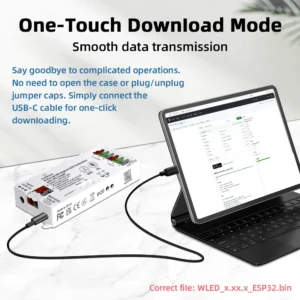

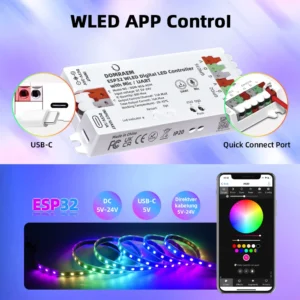

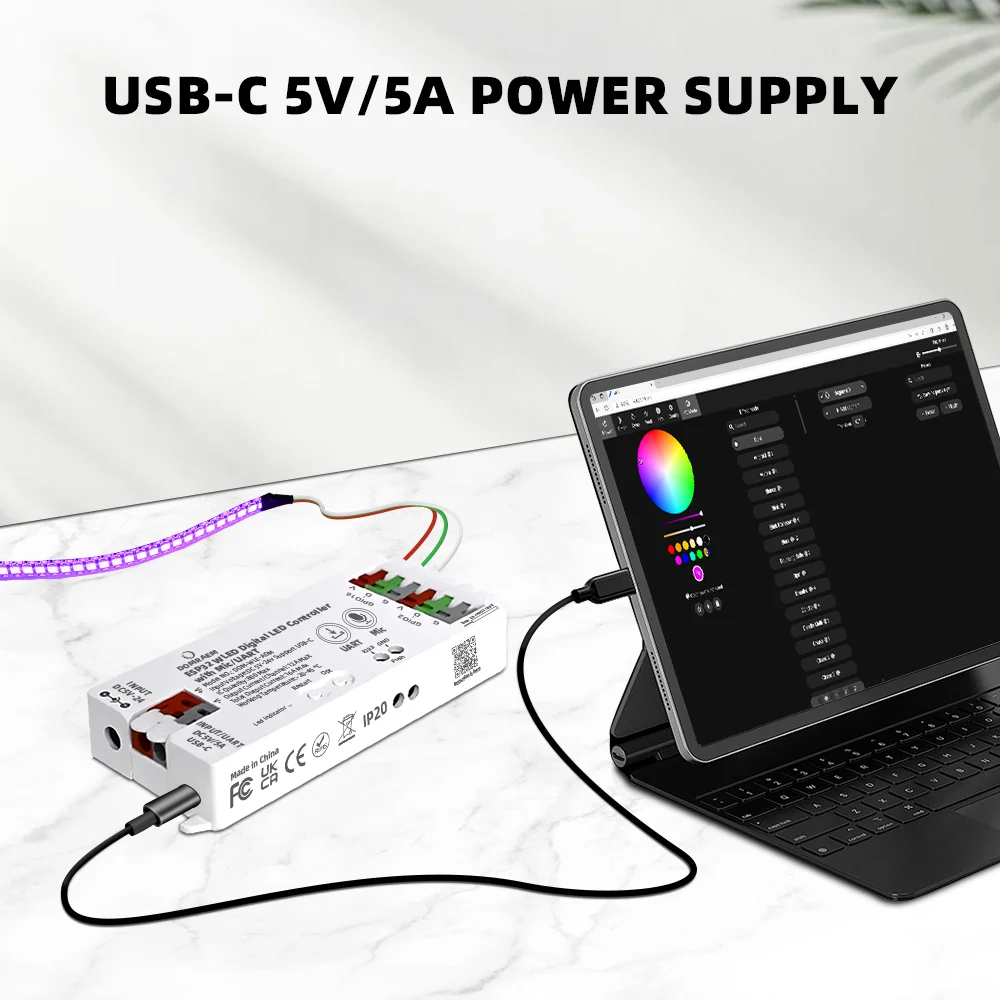

- Multi-Functional USB-C: Equipped with a USB-C interface supporting 5V power input and convenient firmware updates.
- Smart & Versatile Control: Fully compatible with the WLED app, wireless remote controls, and voice assistants (Amazon Alexa, Google Assistant) for segmented color mapping and effect tuning.

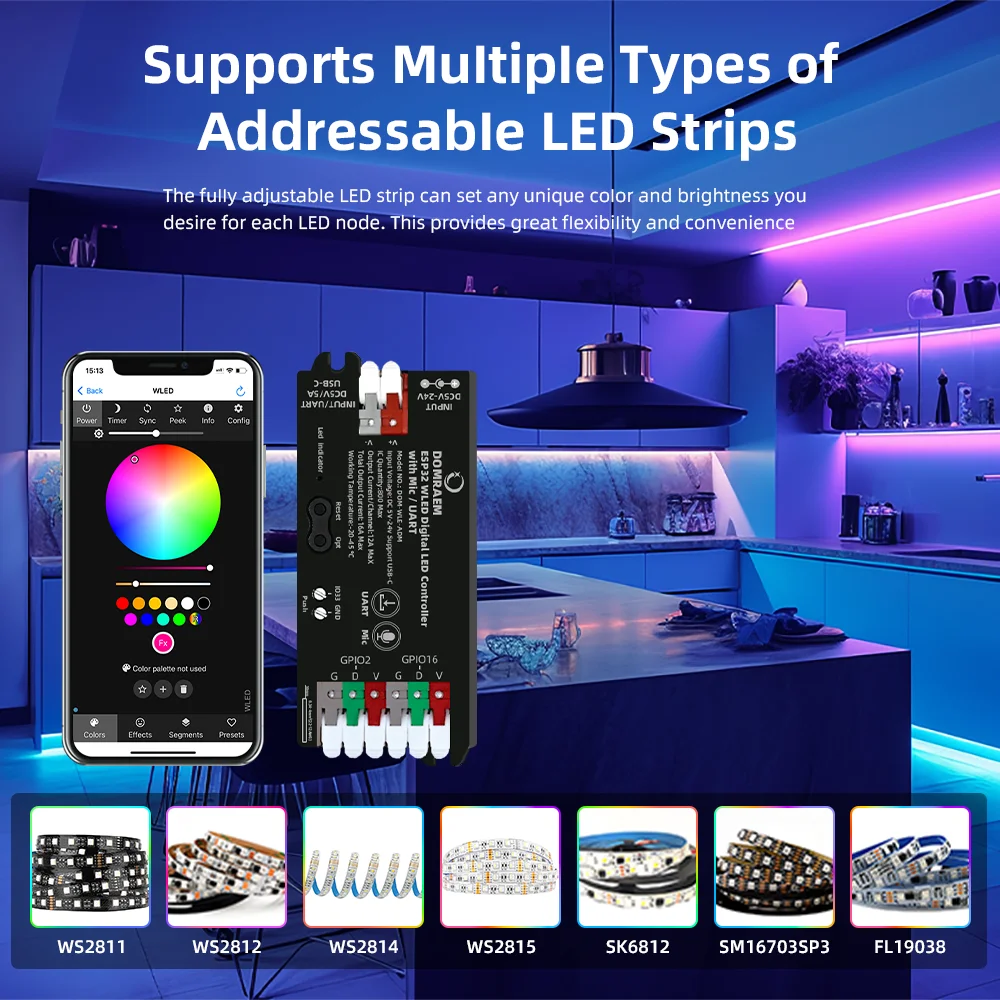

- Broad Protocol Support: Drives up to 800 ICs and works with a wide range of digital ICs, including WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, SK6812, TM1814, and WS2805 across RGB, RGBW, and RGBCCT strips.

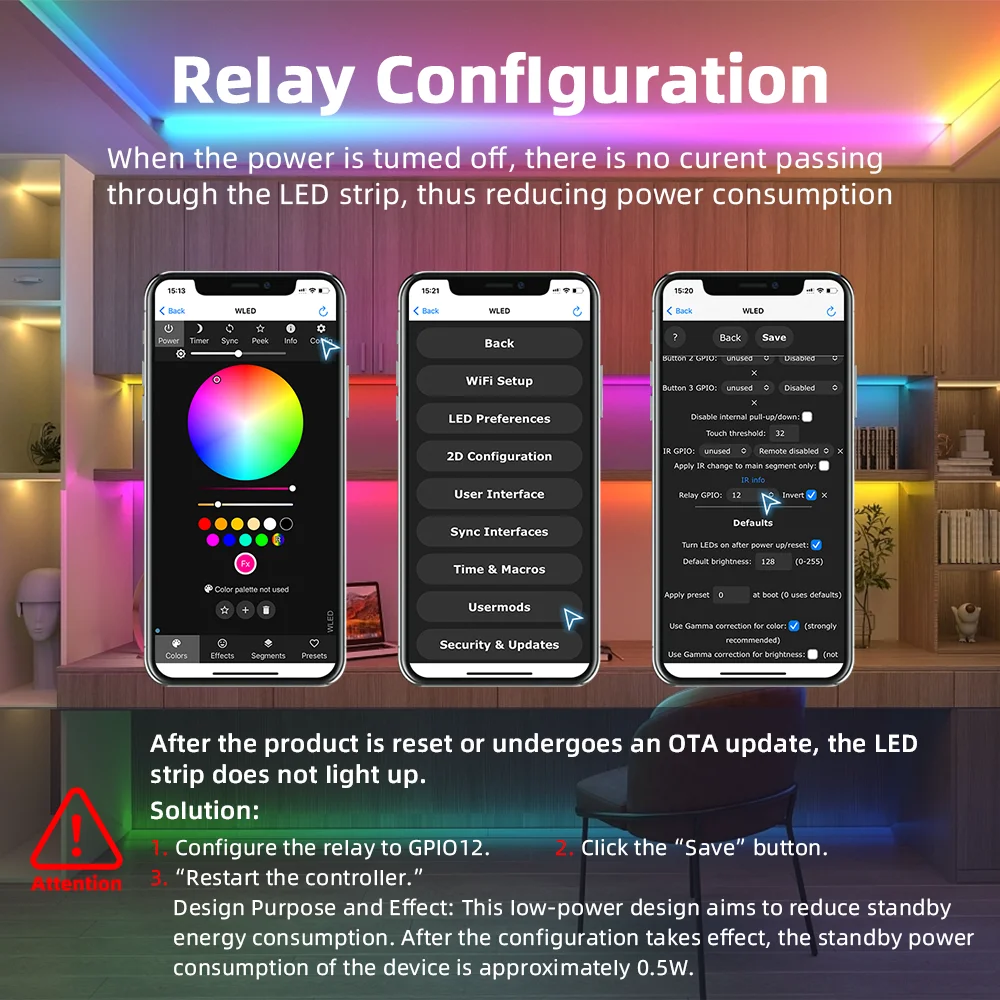

- Energy Efficient: Features ultra-low standby power consumption of approximately 0.5W.
| Product Type | LED Controller |
| Model Number | DOM-WLE-ADM |
| Processor / Chip | ESP32 with Mic UART |
| Input Voltage | DC 5-24V |
| Max Current | 16A (12A Max Single Channel) |
| Max Load Power | 384W |
| Standby Power Consumption | ~0.5W |
| Connectivity | Wi-Fi |
| Control Method | WLED App / Remote Control / Voice Assistant |
| Max Supported ICs | 800 |
| Compatible ICs | WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, SK6812, TM1814, WS2805 |
| Material | ABS Plastic |
| Product Dimensions | 109.5 x 46 x 17.5 mm |
| Operating Temperature | -20°C to 45°C |
| Certifications | CE, EMC, FCC, LVD, RoHS |
| Button Number | ESP32 Mic UART |
