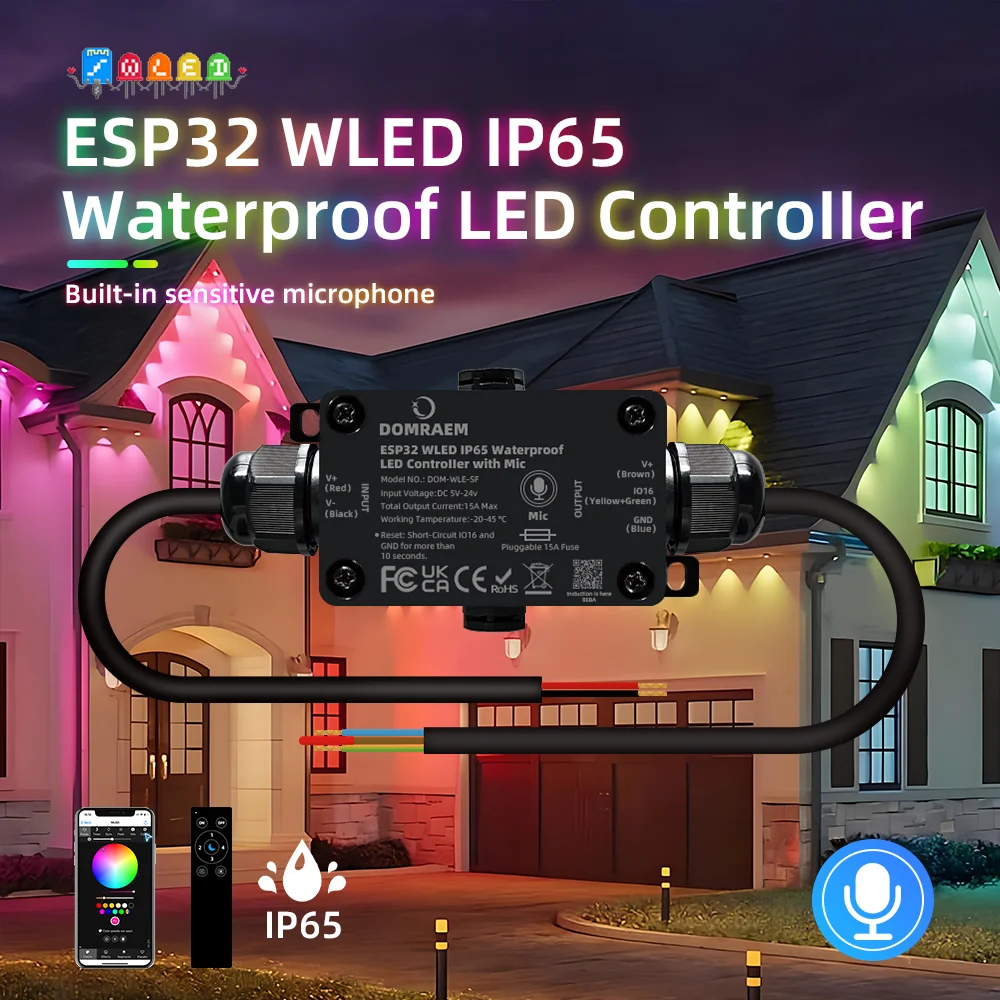

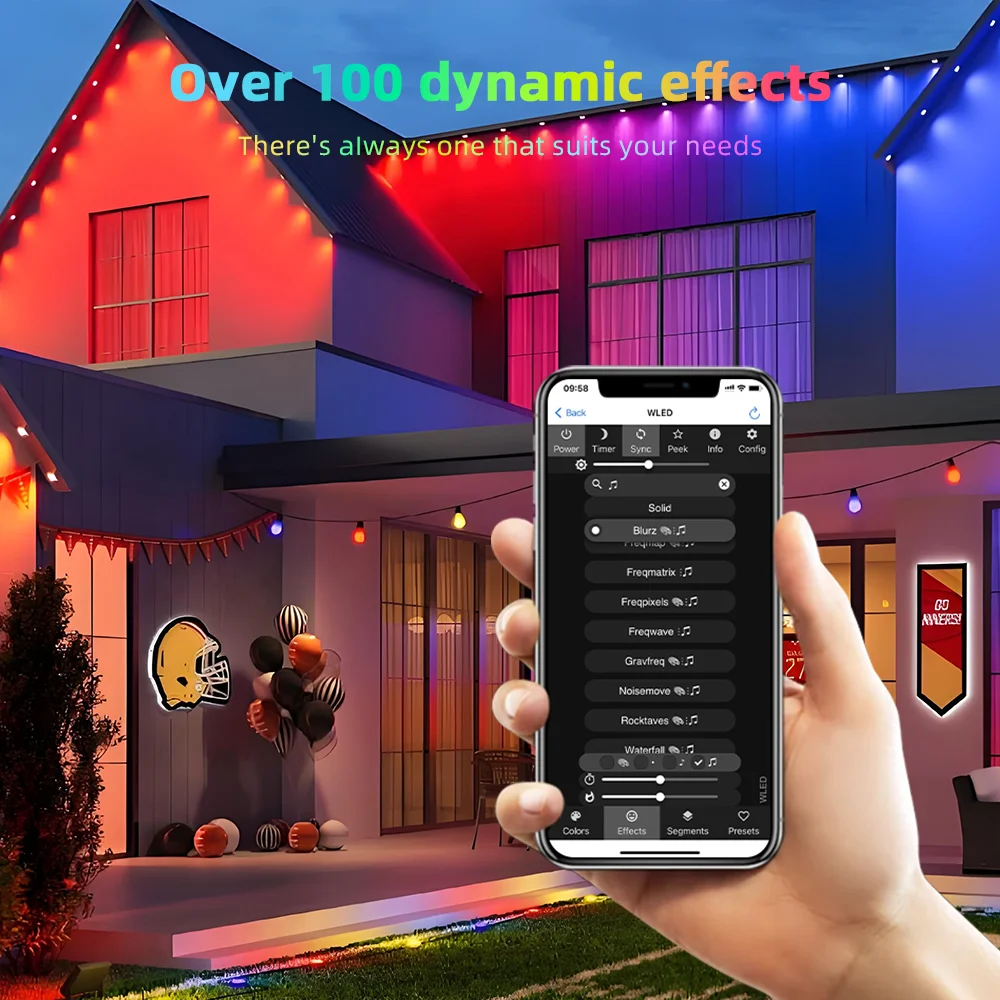

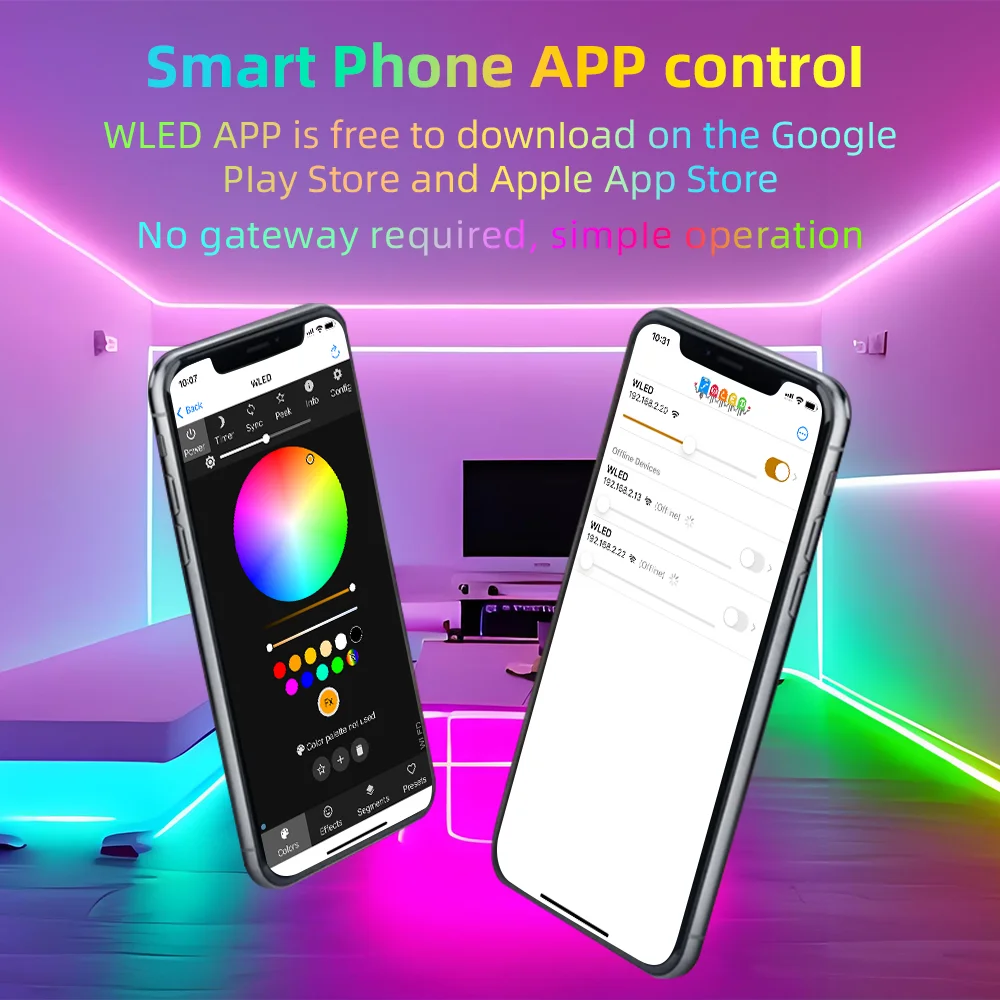

Take complete control of your custom and outdoor lighting setups with the ESP32 WLED IP65 Waterproof Digital LED Controller. Engineered with built-in WLED firmware, this high-performance smart controller supports over 100 dynamic lighting effects and integrates seamlessly with local networks, web interfaces, and smart home ecosystems.

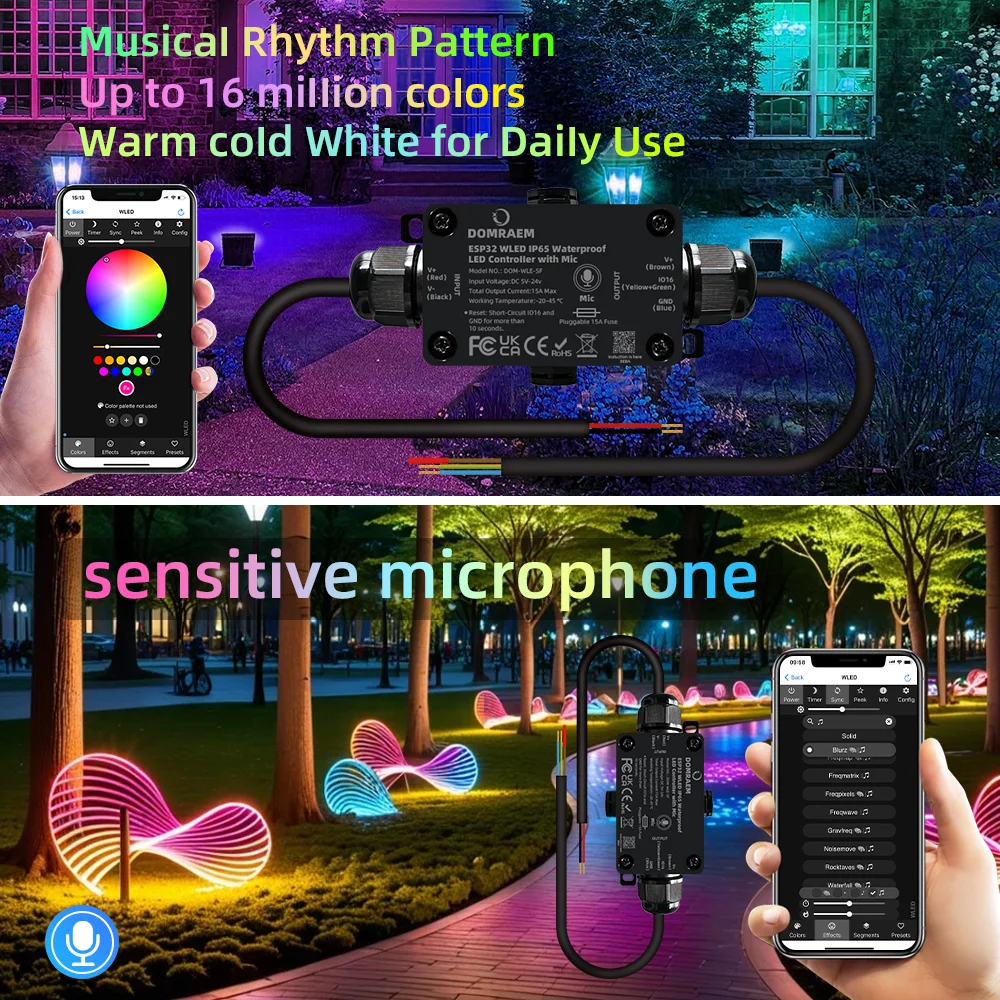

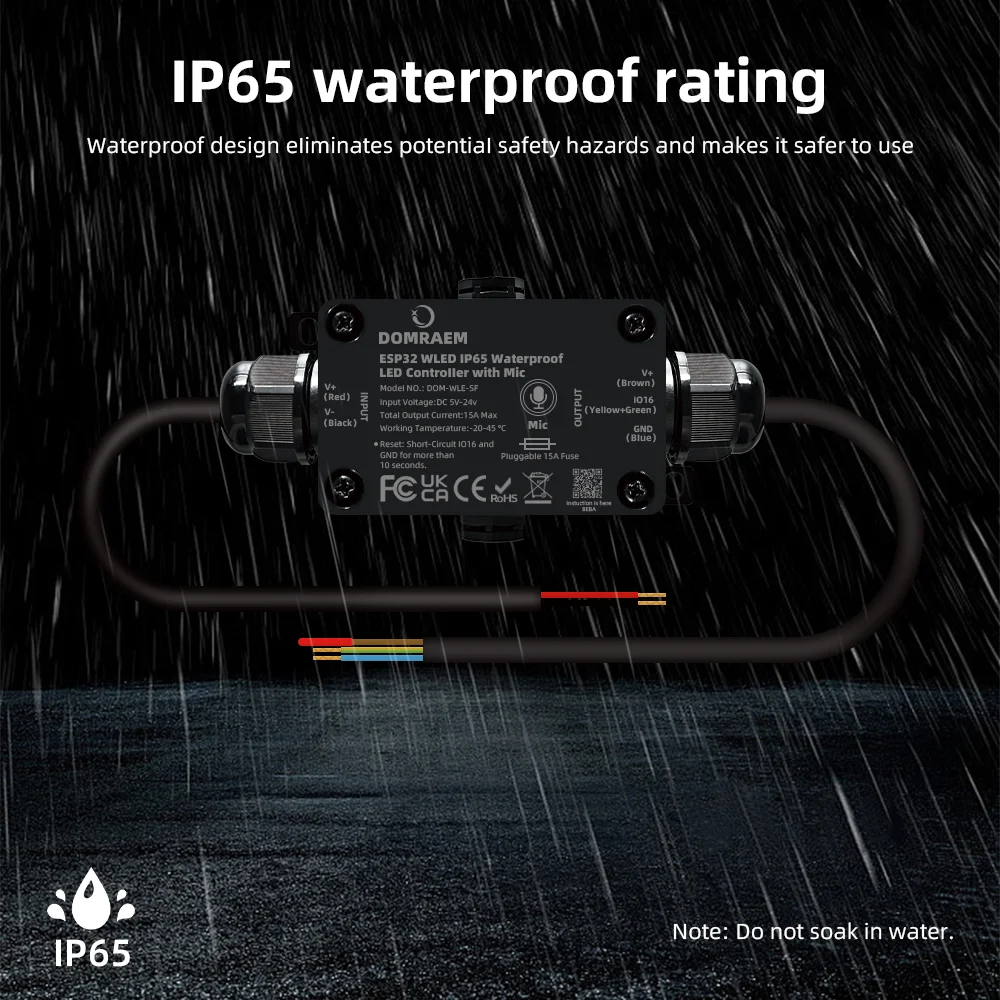

Equipped with an integrated high-sensitivity microphone, it enables real-time sound and music reactive effects, syncing your addressable LED strips directly to ambient audio and rhythms. Built for reliability in demanding environments, the sealed ABS housing delivers IP65 weather resistance, making it suitable for outdoor signage, architectural accents, patios, and humid indoor spaces.
Featuring robust hardware protection, the single-channel output handles up to 15A of current and is safeguarded by an integrated fuse, reverse polarity protection, and short-circuit prevention. Compatible with DC 5V–24V addressable LED protocols including WS2811, WS2812B, WS2815, SK6812, and TM1814.
What’s in the Box
- 1 × WLED Music-Sync Controller
- 1 × Quick Start Guide
| Model | DOM-WLE-SF |
| Microcontroller | ESP32 |
| Input Voltage | DC 5–24V |
| Maximum Current | 15A |
| Maximum Load Power | 360W |
| Ingress Protection Rating | IP65 |
| Wireless Connectivity | Wi-Fi |
| Control Protocol / App | WLED |
| Operating Temperature | -20°C to 45°C |
| Material | ABS Plastic |
| Dimensions | 70 × 55 × 28 mm |
| Compatible LED Chipsets | WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, WS2805, SK6812, TM1814 |
| Certifications | CE, EMC, LVD, RoHS |
| FCC ID | 2BOMS-DOMWLESFQ |
