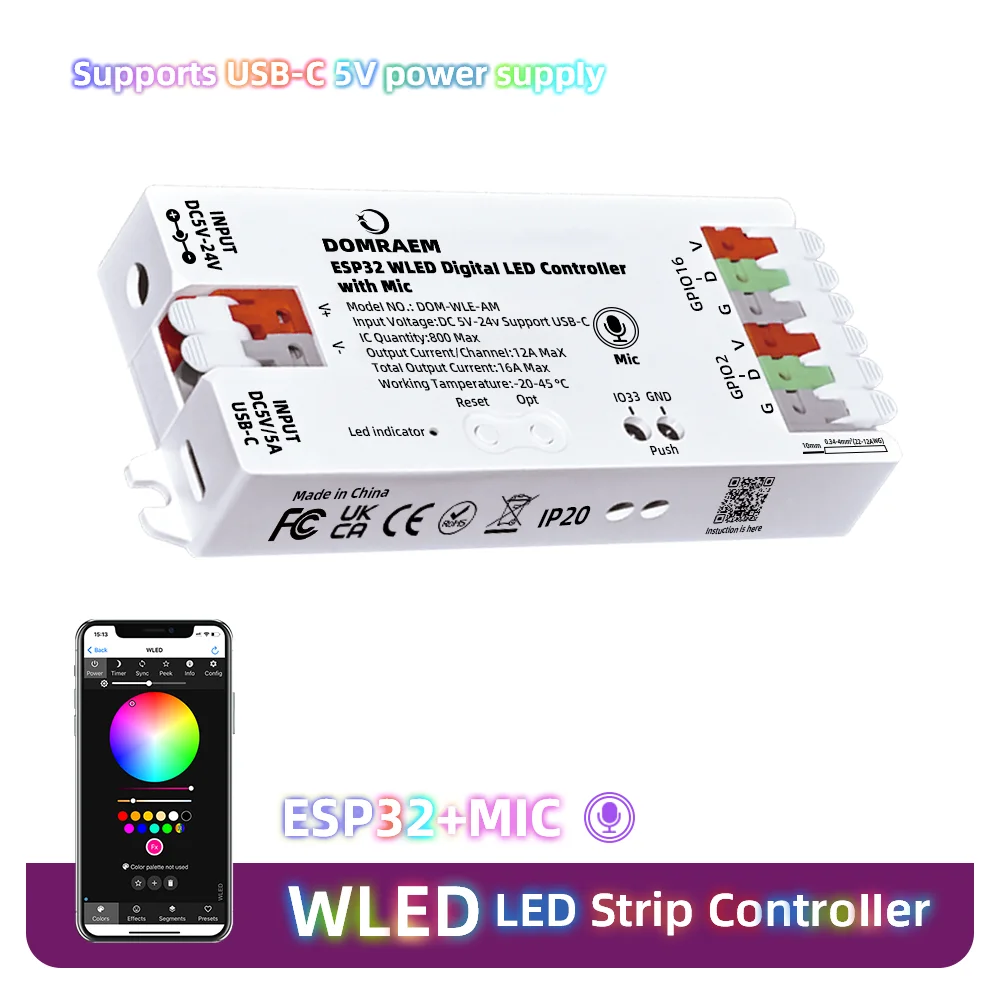

Upgrade your smart lighting setup with the DOMRAEM ESP32 WLED LED Strip Controller. Engineered for dynamic illumination, this dual-output controller comes pre-flashed with WLED firmware, unlocking access to over 100 customizable lighting modes, color programming, and segment control for addressable LED setups.
Key Features
- Sound-Activated Sync: An integrated high-sensitivity microphone captures ambient audio and music rhythms in real time to generate reactive lighting animations.

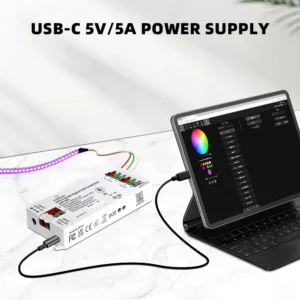

- High Power Output: Supports a wide DC 5–24V input range delivering up to 12A per channel with a 16A total maximum load (384W max), alongside a convenient USB-C 5V direct power option.
- Seamless Smart Home Integration: Fully compatible with Home Assistant via WiFi and MQTT, as well as voice control through Amazon Alexa and Google Assistant, mobile applications, and local web interfaces.
- Broad LED Compatibility: Works smoothly with popular digital addressable LED strips including WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, SK6812, TM1814, and WS2805 in RGB, RGBW, and RGBCCT formats.
- Durable & Efficient: Housed in a compact ABS and PC casing with low standby power consumption (≤0.5W).
| Model Number | DOM-WLE-AM |
| Product Type | LED Strip Controller |
| Connectivity | WiFi |
| Input Voltage | DC 5–24V / USB-C 5V |
| Total Output Current | 16A (Max) |
| Max Load Power | 384W |
| Max Supported ICs | 800 |
| Compatible LED Types | WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, SK6812, TM1814, WS2805 |
| Smart Platform Compatibility | Home Assistant, MQTT, Amazon Alexa, Google Assistant |
| Material | ABS, PC |
| Dimensions | 109.5 × 46 × 17.5 mm |
| Operating Temperature | -20°C to 45°C |
| Warranty | 2 Years |
