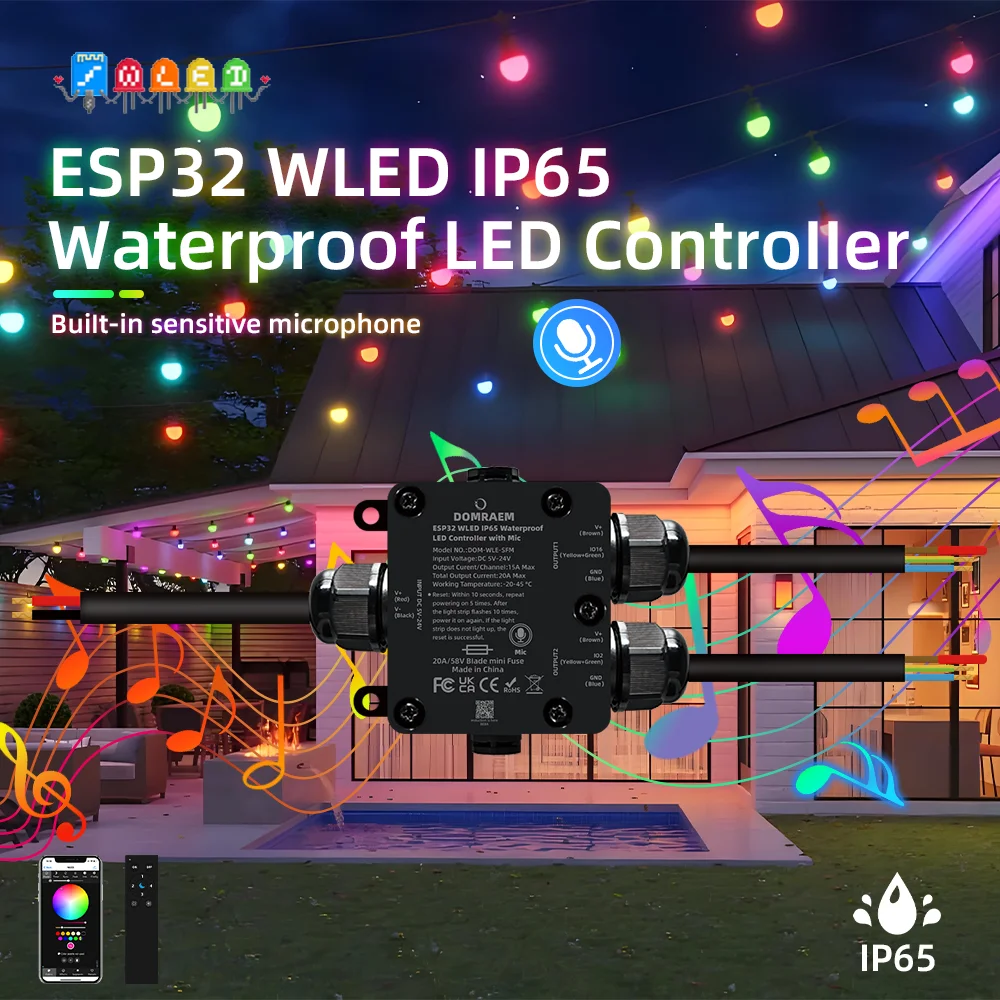

Upgrade your smart lighting setup with the ESP32 WLED 2-Channel LED Controller (Model: DOM-WLE-SFM). Built with an IP65 waterproof housing, this durable controller is ideal for both indoor installations and outdoor environments like patios, commercial light shows, and landscape displays.

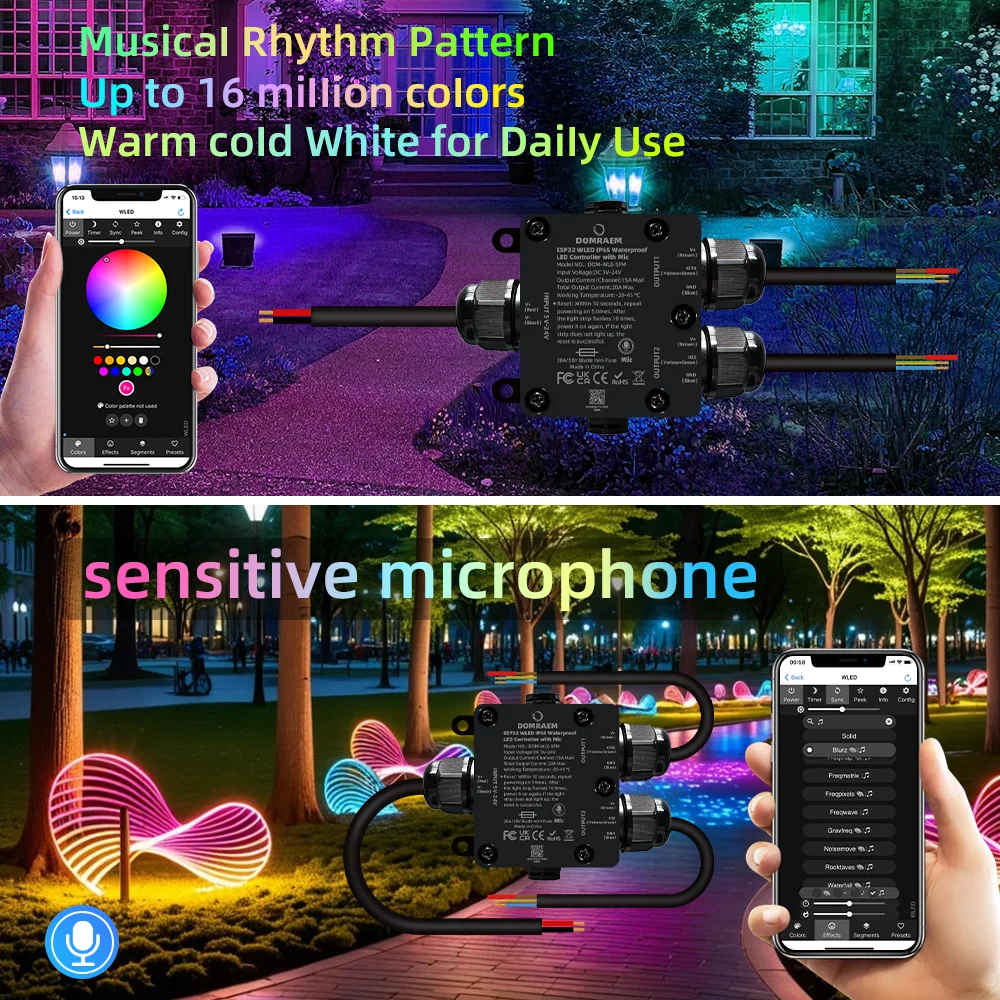

Dynamic Lighting & Music Sync
Powered by open-source WLED firmware, the controller supports up to 800 ICs and over 160,000 DIY color combinations with more than 100 preloaded dynamic effects. The integrated high-sensitivity microphone enables real-time sound-reactive lighting that syncs directly with your music.
Versatile Smart Connectivity

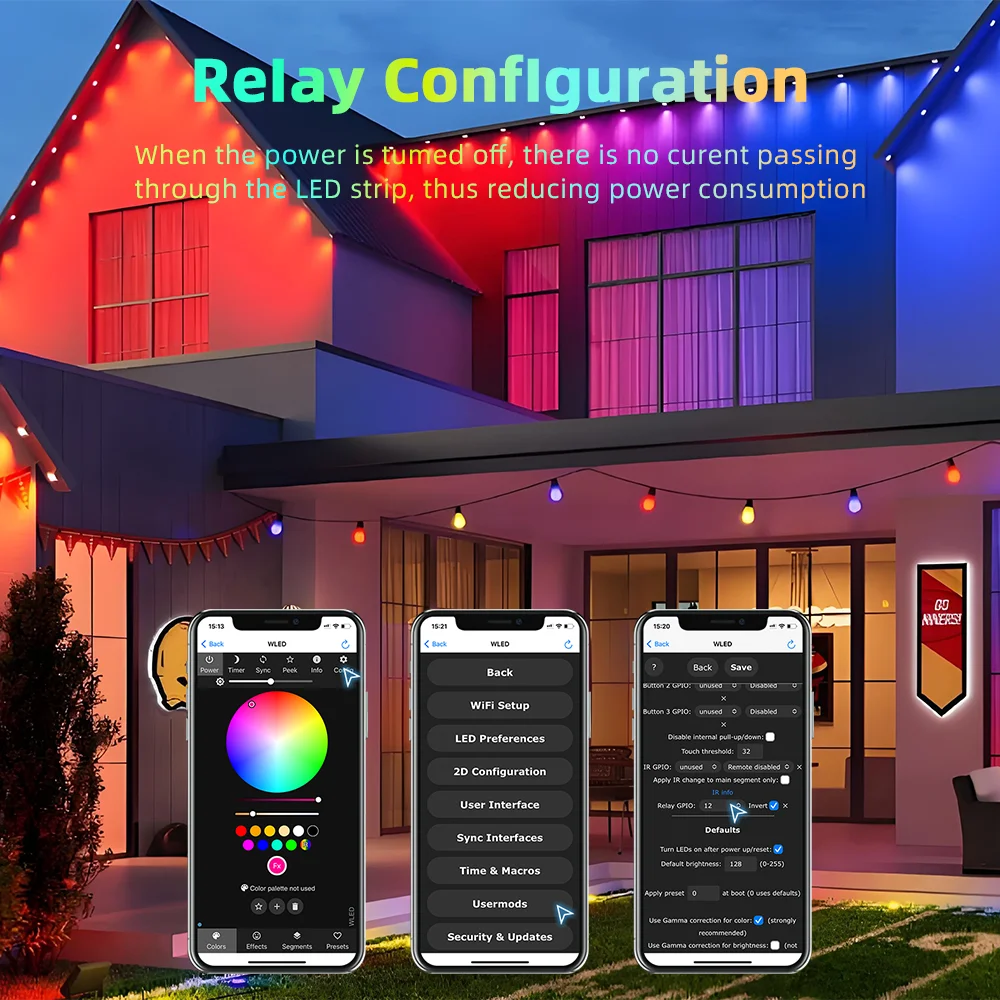

Enjoy flexible wireless control through the WLED mobile app, web interface, Home Assistant, or voice commands via Alexa and Google Assistant. When outdoor Wi-Fi is unavailable, the built-in AP hotspot mode allows direct connectivity without requiring an external network.

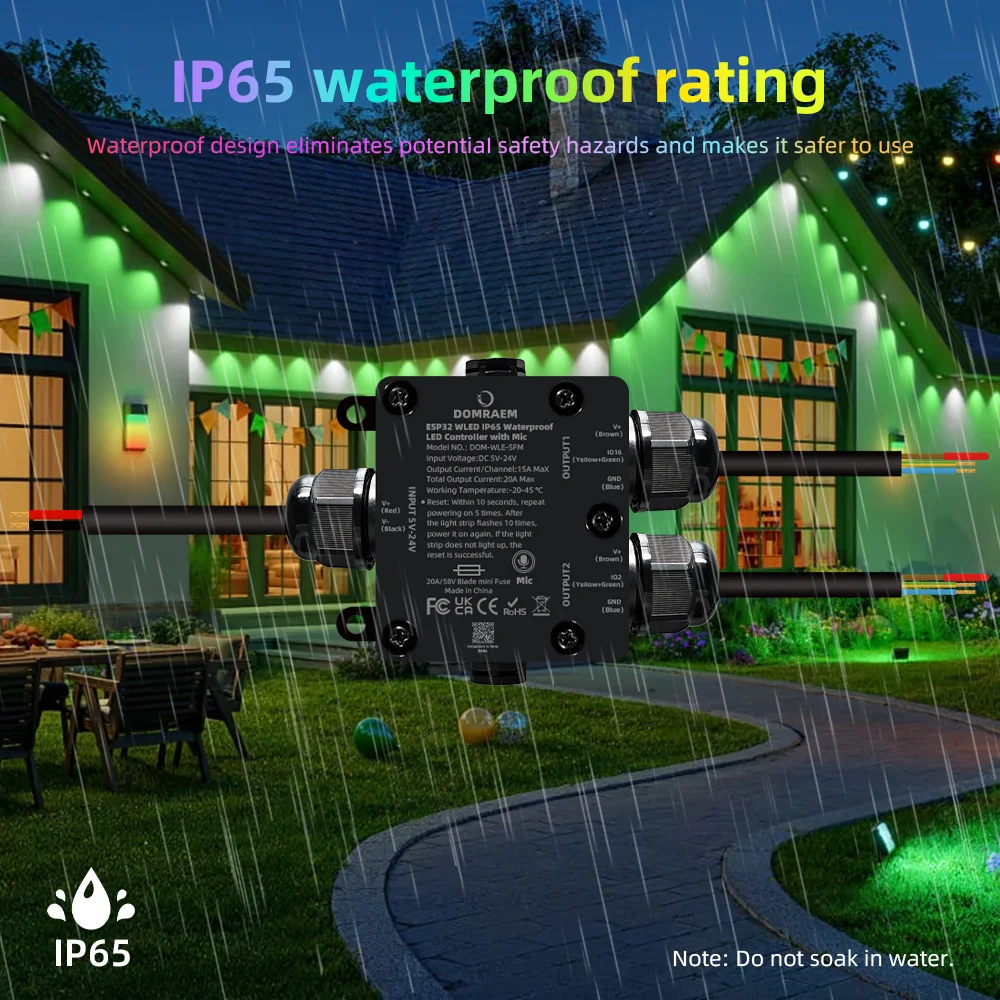

Compatibility & Protection
The controller operates on an auto-adaptive DC 5V–24V input and delivers up to 15A per channel (20A total maximum output). It includes a replaceable 20A fuse and output reverse polarity protection. Compatible addressable LED protocols include WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, WS2805, SK6812, TM1814, and APA102.
| Model | DOM-WLE-SFM |
| Processor | ESP32 |
| Material | ABS Plastic |
| Waterproof Rating | IP65 |
| Input Voltage | DC 5V – 24V |
| Total Output Current | 20A Max |
| Output Current Per Channel | 15A Max |
| Max Load Power | 480W |
| Wireless Protocol | Wi-Fi (802.11 b/g/n) |

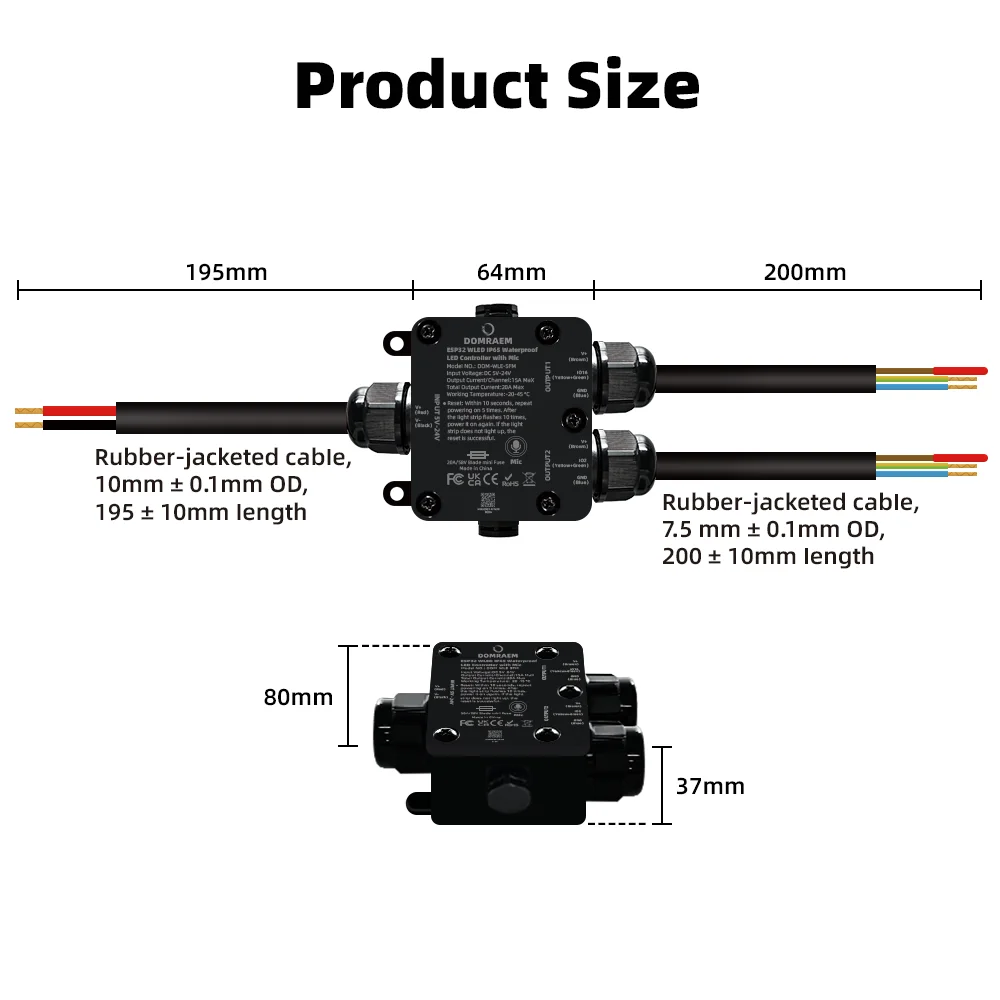

| Dimensions | 70 x 55 x 28 mm |
| Operating Temperature | -20°C to 45°C |
| Compatible ICs | WS2811, WS2812, WS2812B, WS2813, WS2814, WS2815, WS2805, SK6812, TM1814, APA102 |
| Smart Home Compatibility | Home Assistant, Alexa, Google Assistant |
| Certifications | CE, EMC, LVD, RoHS |
