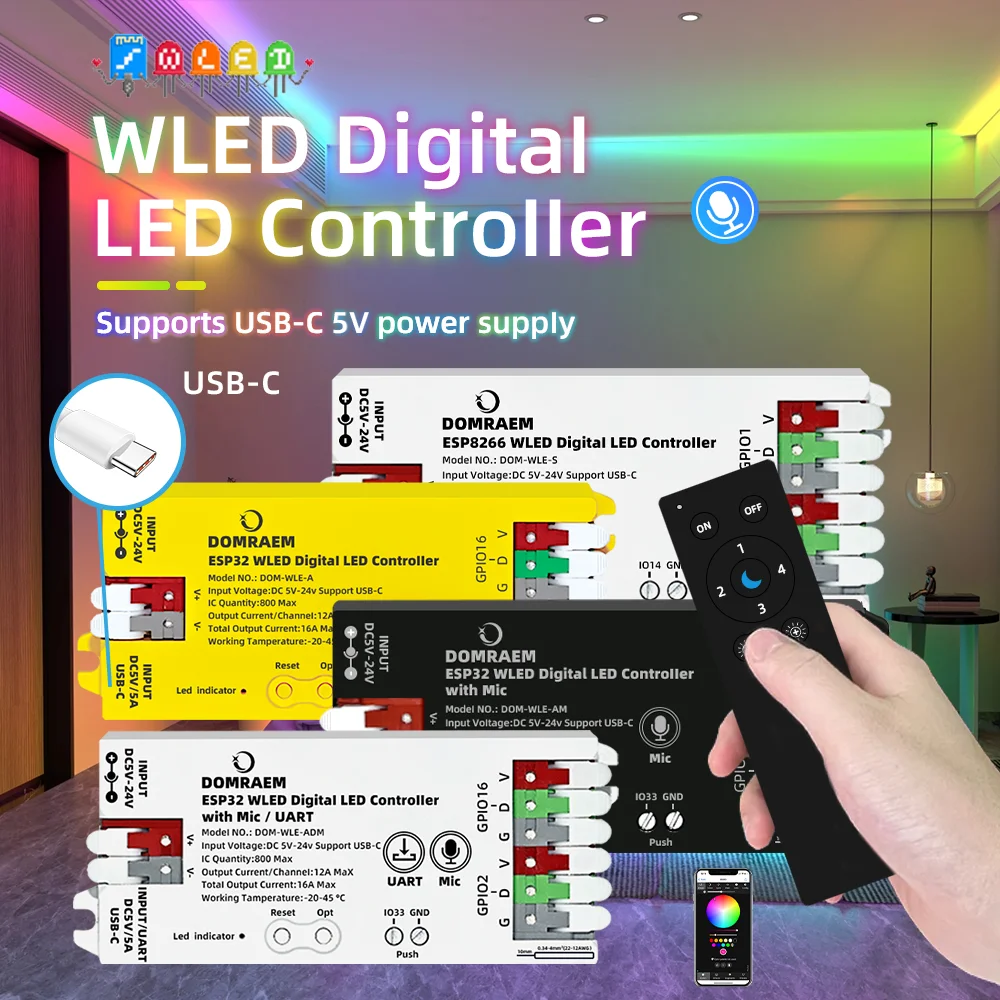

Take complete control over addressable LED lighting with this versatile WLED Digital Strip Controller. Designed to power and manage addressable RGB, RGBW, and RGBCCT strips, it runs open-source WLED firmware for dynamic DIY effects, customizable segments, and support for over 16 million colors via companion iOS and Android apps.
Key Features & Performance
- Broad Compatibility: Supports up to 800 ICs across popular digital protocols including WS2811, WS2812, WS2812B, WS2813, WS2814, WS2805, SK6812, and SM16703P.
- High Power Capacity: Supports DC 5–24V input with a maximum total output of 16A (12A per channel), allowing extended LED strip runs without power drops.
- Built-In Circuit Protection: Engineered with a user-replaceable 16A fuse and reverse polarity protection to safeguard devices and wiring.
- Multi-Functional USB-C: Supports 5V/5A power supply input alongside direct wired firmware flashing and OTA wireless updates.
- Smart Integrations: Features Wi-Fi connectivity with segment control, over 100 preset lighting effects, voice control compatibility, and ultra-low standby power consumption (~0.5W).
Operation & Configuration
After initial setup, reset, or an OTA update, configure GPIO12 and power cycle the controller to ensure proper light output.
| Product Type | LED Strip Controller |
| Material | ABS Plastic |
| Input Voltage | DC 5-24V |
| Max Total Current | 16A |
| Max Output Current per Channel | 12A |
| Max Load Power | 384W |
| Max IC Capacity | 800 ICs |
| Connectivity | Wi-Fi |
| Control Method | WLED App / Wi-Fi |
| Standby Power Consumption | ~0.5W |
| Supported LED Types | WS2811, WS2812, WS2812B, WS2813, WS2814, WS2805, SK6812, SM16703P |
| Dimensions | 109.5 x 46 x 17.5 mm |
| Operating Temperature | -20°C to 45°C |
| Country of Origin | Mainland China |
| Certifications | CE, EMC, FCC, LVD, RoHS |
| Button Number | 2 Years Warranty |
